2mag atexMIXcontrol besturing voor atexMIXdrive1 zone 2
Art.Nr.
L131999300
2mag atexMIXcontrol besturing voor atexMIXdrive1 zone 2
Art.Nr.
L131999300
Voor aansturing van maximaal 1 atexMIXdrive1
Geschikt voor gebruik in cleanrooms en ATEX zone 2
Gecertificeerd volgens ATEX II 3G Ex nAC IIC T6
Afmetingen (bxdxh) 360 x 460 x 200 mm
Gewicht circa 15 kg
Levering ZONDER atexMIXdrive1
excl. BTW
2.670,-
3 005,-
(Alle prijzen zijn exclusief BTW)
| Merk | 2 mag |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |

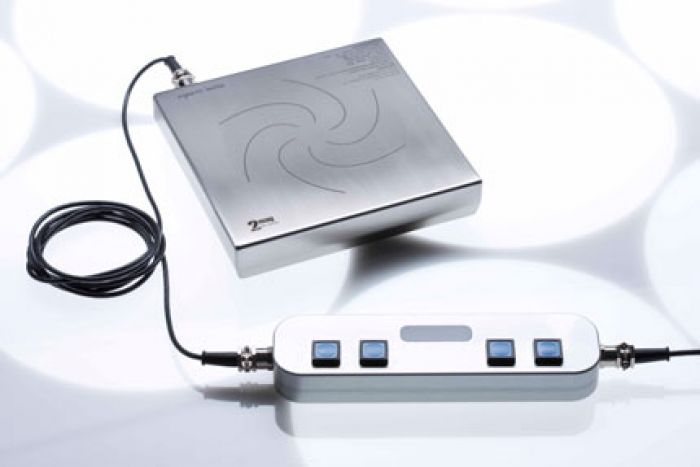

2mag atexMIXcontrol cleanroom bestuuring voor atexMIXdrive1 zone 2
Explosion protected control unit for the connection of 1 stirring drive atexMIXdrive.
20 watts stirring power, speed range from 100 up to 2,000 rpm, jerk-free stirring even at low speeds, 4-step power setting (25/50/75/100%).
Clear digital display for speed- and power settings, SoftStart for reliable catching/centering and safe accelerating of the stirring bar, QuickSet for quick setting of start- and maximum speed, automatic memory function to save the last settings, explosion protected housing, operation temperature up to +40°C, certified according to ATEX II 3G Ex nA nL IIC T6.
atexMIXcontrol cleanroom is made for use in clean rooms.
2 years warranty on material and manufacturing, developed and made in Germany.
| Type | atexMIXcontrol cleanroom |
| Speed range | 100 - 2,000 rpm |
| Stirring power (max.) | 20 Watt |
| Power setting | 25/50/75/100% (4-steps) |
| Housing material | Aluminium |
| Permitted operation conditions | 0 up to +40 °C (at 80% humidity) |
| Electrical data | 100-240 V / 50-60 Hz / 1,5 A |
| Dimensions (WxDxH) | 210 x 55 x 30 mm |
| Weight (gross) | approx. 3.6 kg |
| Protection category | IP65 |
| Ex-mark | ATEX II 3G Ex nA nL IIC T6 |
| Certificate of conformity | EPS 10 ATEX 1 246 X |
