2mag FABdrive RVS magneetroerder z. verwarming 1000 liter
Art.Nr.
L131950101
2mag FABdrive RVS magneetroerder z. verwarming 1000 liter
Art.Nr.
L131950101
RVS uitvoering met softstart functie
V
oor maximaal 1.000 liter (H2O)
Toerental 80 - 990 rpm
Afmetingen (bxdxh) 180 x 180 x 75 mm
Gewicht circa 9 kg voor
Besturing middels FABcontrol; NIET inbegrepen in levering
oor maximaal 1.000 liter (H2O)
Toerental 80 - 990 rpm
Afmetingen (bxdxh) 180 x 180 x 75 mm
Gewicht circa 9 kg voor
Besturing middels FABcontrol; NIET inbegrepen in levering
excl. BTW
2.437,-
2 745,-
(Alle prijzen zijn exclusief BTW)
| Merk | 2 mag |
|---|---|
| Max. volume per roerpositie (H2O) | 1.000 |
| Min. RPM | 80 |
| Max. RPM | 990 |

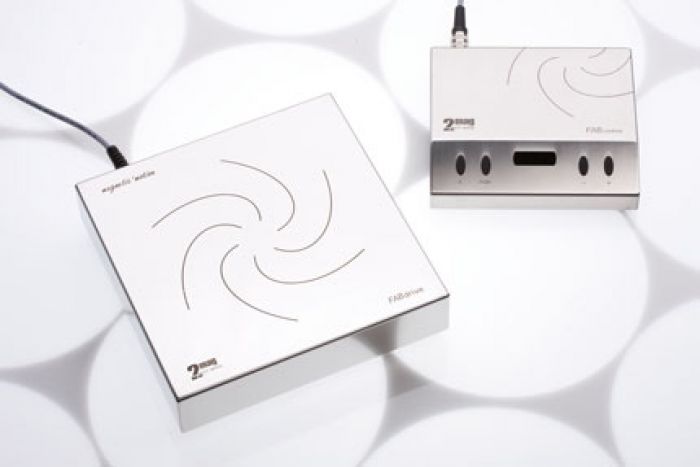

2mag FABdrive magneetroerder tot 1000 liter
Unbeaten strong magnetic stirrer with very compact housing dimensions, up to 1,000 litresstirring volume, also suitable for highly viscous media.
Very strong magnetic coupling, therefore predestined for magnetic power transmission over wide distances
(up to 150 mm), for thick vessel bottoms or for double-coat vessels, ideal for the integration into process engineering systems and industrial processing.
Maintenance-free 2mag-motor-drive with large speed range from 80 up to 990 rpm. Fully encapsulated and tight stainless steel housing, IP64, extremely robust construction and performance, easy to clean under running water and maximum firm. Individual measurements on request.
Please order control unit separately.
| ype | FABdrive |
| Stirring points | 1 |
| Stirring volume / stirring point | 1 – 1.000 Liter |
| Speed range | 80 – 990 rpm |
| Material housing | Stainless steel |
| Permitted operation conditions | -10 up to +50 °C (at 95% humidity) |
| Operating voltage | 48 VDC |
| Dimensions (WxDxH) | 180 x 180 x 75 mm |
| Protection category | IP64 |
| Weight (gross) | approx. 9.0 kg |
