2mag MIXdrive 1eco HT RVS magneetroerder 3 liter
Art.Nr.
L131940301
2mag MIXdrive 1eco HT RVS magneetroerder 3 liter
Art.Nr.
L131940301
RVS uitvoering, IP68 waterdicht, stofdicht en kiemdicht
Geschikt voor maximaal 10 liter (H2O)
Toerental 100 - 2000 rpm (afhankelijk van besturing)
Geschikt voor water/oliebaden, CO2 incubatoren en ovens
Omgevingstemperatuur -10°C tot +50°C (bij 100% luchtvochtigheid)
In ovens te gebruiken tot 200°C
Ook onder te dompelen in water temperatuur tot +95°C
Afmetingen (bxdxh) 180 x 180 x 38 mm
Gewicht circa 3,3 kg
Besturing middels MIXcontrol 20 (RS232) of MIXcontrol eco (DinRAil)
Besturing NIET inbegrepen in levering
excl. BTW
398,-
450,-
(Alle prijzen zijn exclusief BTW)
| Merk | 2 mag |
|---|---|
| Max. volume per roerpositie (H2O) | 3 |
| Min. RPM | 100 |
| Max. RPM | 2.000 |
2mag MIXdrive 1eco HT RVS magneetroerder 3 liter 200°C

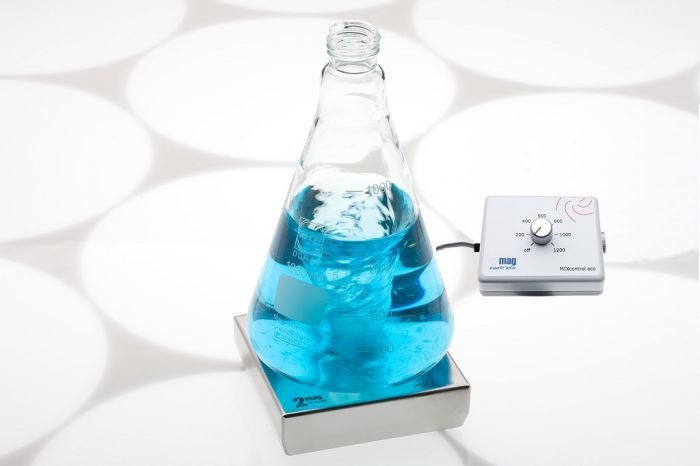

Ultra flat, wear-free magnetic stirrer with 1 stirring position, suitable for vessels up to 3,000 ml.
1 stirring position, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, jerk-free stirring even at low speeds.
Fully encapsulated and hermetically sealed stainless steel housing, IP68, water-, dust-, and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2-incubators and ovens.
Two different temperature areas available:
Basic-version up to +50 °C, HT-version up to +95 °C submerged in water baths and up to +200 °C in ovens, individual dimensions on request.
Please order control unit separately!
| Type | MIXdrive 1 eco | |
| Stirring points | 1 | |
| Stirring volume / stirring point | 1 - 3,000 ml | |
| Stirring power (max.) | 10 W | |
| Material housing | Stainless steel | |
| Permitted operation conditions Basic-version | -10 °C up to +50 °C in air, up to +50 °C in water submerged | |
| Permitted operation conditions HT-version | up to +200 °C in air, up to +95 °C in water submerged | |
| Operating voltage (max.) | 48 VDC | |
| Dimensions (WxDxH) | 120 x 120 x 35 mm | |
| Protection category | IP68 | |
| Weight (gross) | approx. 1.5 kg | |
| Order no. Basic-version | L131940101 | |
| Order no. HT-version | L131940301 | |
