Bohlender Sicco V1880-12 vacuümexsiccator 32 liter

Art.Nr.

L182V1880-12

Volume 32 liter Temperatuurbereik -20°C tot +70°C Exsicator van massief acryl glas Afmetingen intern (bxhxd) 265 x 460 x 260 mm Afmetingen extren (bxdxh) 315 x 550 x 310 mm Gewicht 27kg Inclusief vacuümmeter, kleppen en slangaansluitingen Kompleet met 4 inlegbladen

Bekijk alle specificaties

excl. BTW 7.642,-

Catalogusprijs 8 625,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Bohlender
Uitvoering	vacuüm
Volume	32 liter

Productbeschrijving

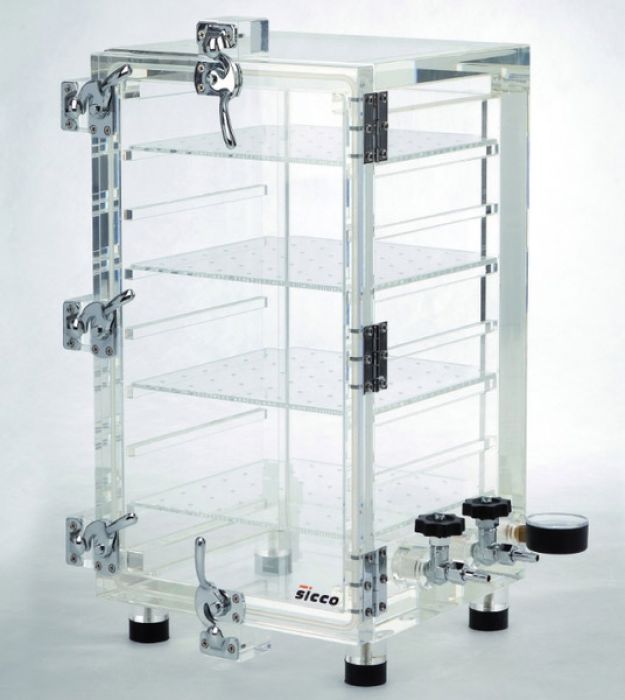

Bohlender Sicco V1880-12 vacuümexsiccator 32 liter

Applications

SICCO Vacuum Desiccators are suitable for storing sensitive products in a vacuum. The vacuum inside the desiccator ensures rapid drying of the stored products. These systems allow storage in an oxygen and carbon dioxide free environment and are, for example, suitable for storage of semiconductor samples.

Product description

Solid walls of 25 mm thickness, circular silicone gasket, vacuum gauge, V 1880-04 including two shelves, usable with up to three shelves, V 1880-08 including three shelves, usable with up to five shelves, and V 1880-12 including four shelves, usable with up to seven shelves.

Product advantages

Clear acrylic panels, interior is visible from all sides
Circular silicone seal
Non slip rubber feet
Variable height shelves
Vacuum gauge (0-760 mm of mercury)
Vacuum up to 0,0001 Torr
Two needle valves with O.D. 9,0 mm

Specifications

Panels: clear
Material: PMMA
Temperature resistance: from -20°C to +70°C
Use: vacuum up to 0,0001 Torr
Stand: rubber feet

Other dimensions

Overall dimensions W x H x D mm	300 x 340 x 300	300 x 440 x 300	315 x 550 x 310
Excess length of valves andvacuum gauge mm	100	100	100
Usable interior space W x H x D mm	260 x 260 x 260	260 x 360 x 260	265 x 460 x 260
Interior volume Liters	18	25	32
Weight kg approx.	15	18	27
Maximum all-over load per shelf kg	9	9	9
Total all-over load kg	30	40	50
Cat.-No.	V 1880-04	V 1880-08	V 1880-12
