Bohlender Sicco V1982-08 handschoenkast met doorgeefkamer
Art.Nr.
L182V1982-08

Bohlender Sicco V1982-08 handschoenkast met doorgeefkamer

Art.Nr.
L182V1982-08
PMMA werkkast met doorvoeren voor handschoenen Inclisief doorgeefkamer aan de zijkant Volume 290 liter, doorgeefkast 24 liter Tepmeratuurbereik -20°C tot +70°C Afmetingen extern (bxhxd) 1210x700x600 mm Afmetingen intern (bxhxd) 850x650x540 mm Afmetingen intern doorgeefkast (bxhxd) 220x275x320 mm Gewicht circa 20 kg Met aansluitingen voor externe afzuiging Levering inclusief 2 handschoenen van natuurlijk rubber maat 9
Bekijk alle specificaties
excl. BTW  5.376,-
6 070,-
(Alle prijzen zijn exclusief BTW)
-
+
Specificaties
Specificaties
Merk Bohlender
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

Bohlender Sicco V1982-08 handschoenkast met doorgeefkamer

Product description

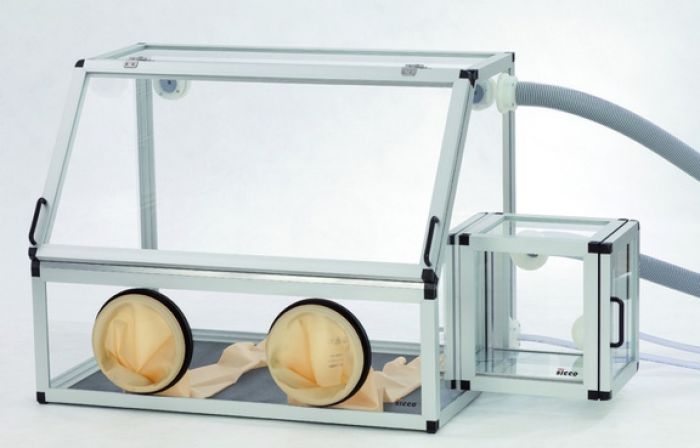

Aluminium frame with panels made of acrylic glass, base panel made of polyethylene. Front panel with two glove ports and one pair of natural rubber gloves size 9, two lead-ins for cables on the back side (upper left and upper right).
Transfer chamber with two doors, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products. Work space and transfer chamber each including two hose connectors for gas-filling and aeration and approprate tubing (2x 5 m tubing for gas-filling made of PVC, 2x 5 m aeration tubing made of PE).

Product advantages

  • Robust and light-weight aluminium construction
  • Superb all-round visibility
  • Non-slip rubber feet
  • Cable lead-ins for electric devices
  • Large front opening
  • Connectors for gas-filling and aeration including appropriate tubing
  • Transfer chamber for inserting further products

Applications

The SICCO Glove Boxes allow safe working with sensitive compounds in a controlled environment. The natural rubber gloves provide with the necessary mobility for safe handling. The connectors for gas filling allow to flush the workspace as well as the transfer chamber, the glove boxes can be easily loaded.

Optional possible types:

  • Light protected or antistatic
  • Box modularly expandable
  • Openings for connections to a fume hood
  • Additional pair of gloves at the back side
Overall dimensions
W x H x D mm
1210 x 700 x 600
Weight
kg
20
Capacity box
litres
290
Capacity transfer chamber
litres
24
Max. all-over load box
kg
40
Max. all-over load transfer chamber
kg
3
Hinged lid opening
W x H mm
850 x 425
Usable interior space Box
W
850 x 650 x 540
Usable interior space transfer chamber
W x H x D mm
220 x 275 x 320
