Edmund Bühler VKS75 A control orbitale schudder 26mm 75kg

Specificaties

Specificaties
Merk	Edmund Bühler.
Schudbeweging	orbitaal
Schudgewicht in kg	75
Temperatuur	Kamertemperatuur
Min. RPM	40
Max. RPM	200

Productbeschrijving

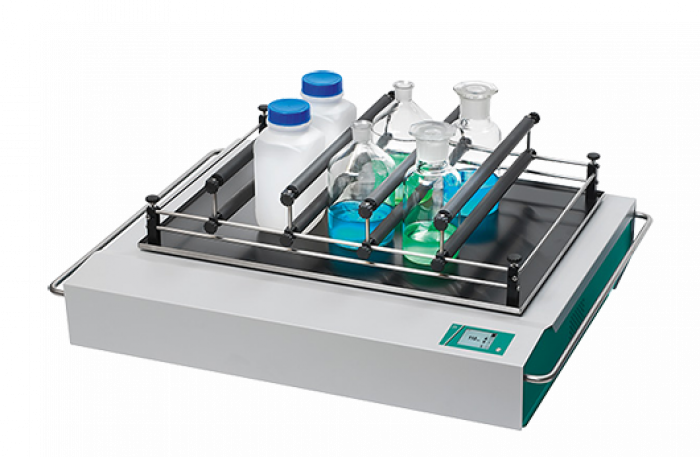

Multi-Flask Shaker VKS 75 A control

Big heavy-duty shaker VKS 75 A control with touch display and programmable control has an orbital shaking motion, a speed range of 30 – 200 rpm and a stroke of 26 mm. The VKS 75 A control is ideally suited for high loads up to 75 kg. (floor installation only!)

Basic Equipment
Basic device without shaking plate, without rack system
With touch display and programmable control

Loading Capacity


Erlenmeyer flasks 500 ml	32pieces
Erlenmeyer flasks 2000 ml	12 pieces
Separating funnels 1000 ml	6 pieces

Options

USB2
RS232
Control interface
Safety package
Defined stop

Details

Motion:	orbital
Shaking platform:	760 x 600 mm
Max. load:	75 kg
Shaking Speed:	30 - 200 rpm, in steps of 5
Stroke:	26 mm
Runtime:	programmable / continuous
Order no.:	6111 000
Accessory:	Shaking plate VKS (1-storey) Rack System Combifix VKS A Rack System Combifix VKS B Rack System Combifix VKS C Universal tray VKS 1-storey Rack System VKS (2-storey) Rack System VKS "Giant" (3-storey)

Technical Data

Electrical supply:	100 - 240 V, 50 / 60 Hz please indicate in case of order
Enclosure protection:	IP 21
Heat emission:	max. 15 W
Ambient temperature:	5°C to 50°C
Relative humidity:	~ 85 %
Dimensions (w x d x h):	1050 x 835 x 250 mm
Weight:	110 kg
