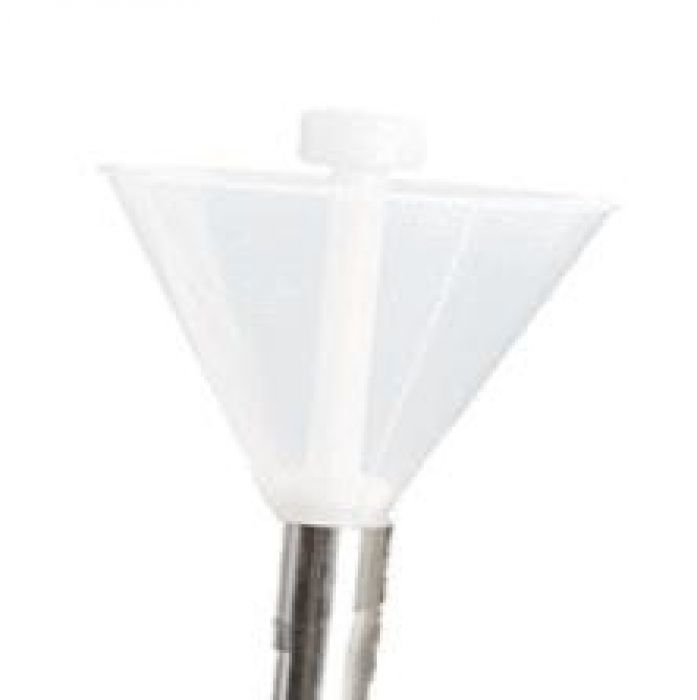

Fritsch standaard trechter voor lang- & bulkmateriaal P15

Fritsch snijmolen Pulverisette 15

• Principe: het monster wordt tussen 4 draaiende en 3 vaste messen versneden tot het de zeef kan passeren.

Toepassingen

• Geschikt voor: zachte tot middelharde, vezelige en taaie materialen.
• Voor verkleinen van kunststoffen, rubber, leer, stof, vezels, hout, bladeren, wortels, veevoer, graan, maïs, turf, tabak, papier, karton, afgeleide brandstoffen, metaal-vrije afval, huishoudelijk afval, LCD-glas-en toetsenborden van mobiele telefoons, elektronische chips, printplaten, kolen, hoorn, dragees, tabletten, kurk, drugs, heterogene mengsels van materialen, maïs, mout, pasta, kruiden, specerijen en gedroogd vlees.

Technische gegevens

• Max. afmeting te malen monster: 70 mm
• Max. hoeveelheid monster:0,8 l/min
• Eindfijnheid:afhankelijk van de zeef
• Zeefringen:0,25 – 20 mm
• Toerental:2800 t/min
• Afmeting totaal(lxbxh):420 x 480 x 690 mm
• Vermogen:1500 W / 230V
• Gewicht:42 kg

Informatie van Fritsch website

For comminution of dry sample material with soft to medium-hard consistency, for fibrous materials or cellulosic materials as well as for sample preparation according to RoHS.

Max. feed size: 70 x 70 mm, throughput quantity: up to 50 l/h

Areas of application

For the comminution of plastics, rubber, leather, fabric, fibres, wood, leaves, roots, animal fodder, grain, corn, peat, tobacco, paper, cardboard, derived fuels, metal-free waste, household waste, mobile phone LCD glass, mobile phone keypads, disassembled circuit boards, coal, horn, dragées, tablets, cork, drugs, heterogeneous mixture of materials, maize, malt, pasta, herbs, spices, dried meat.

Straw, films and similar materials can be fed in at their full length.

In addition, the Cutting Mill PULVERISETTE 15 is also recommended for sample preparation according to RoHS.

Method of operation

The PULVERISETTE 15 comminutes sample material with a rotor with straight cutting edges and fixed knives by cutting forces. Due to the progressive cutting geometry between the cutting edges of the rotor and the fixed knives in the grinding chamber, the sample material is automatically transported away and thereby comminuted increasingly fine between the knives until the desired final fineness is achieved.

Features overview

• Funnel for long and bulk solids or protected funnel made of stainless steel with plastic sample pusher
• Possible to lift open the entire top part of the housing and closing lid – the lid completely removable
• Externally adjustable cutting gap
• Rotor knives can be turned (2 cutting edges) – double service life
• Very stable due to the rotor with double bearing on shaft and in the lid
• Defined final fineness due to replaceable sieve inserts
• Optimum airflow for fast size reduction and secure protection against clogging
• Easy FRITSCH cleaning with just two motions without tools
• Particularly high rotor speed of 2800 rpm
• FRITSCH-air cooling
• Final fineness depends on sieve insert 0.25 - 20 mm
• CE mark and 2 year guarantee

Equipment

Instrument without funnel, cutting tool set (consisting of rotor with straight cutting edges and fixed knives), sieve insert, collecting vessel and stand.
Required accessories:

• Funnel for long and bulk solids or protected funnel with sample pusher
• Cutting tool set made of tool steel or chromium-free tool steel
• Sieve inserts with trapezoidal or square perforation in stainless steel 316L or chromium-free steel DC01
• Collecting vessel 3.5 litres or collecting vessel for large quantities 60 litres with filter hose

Optional accessories:

• Universal support stand
