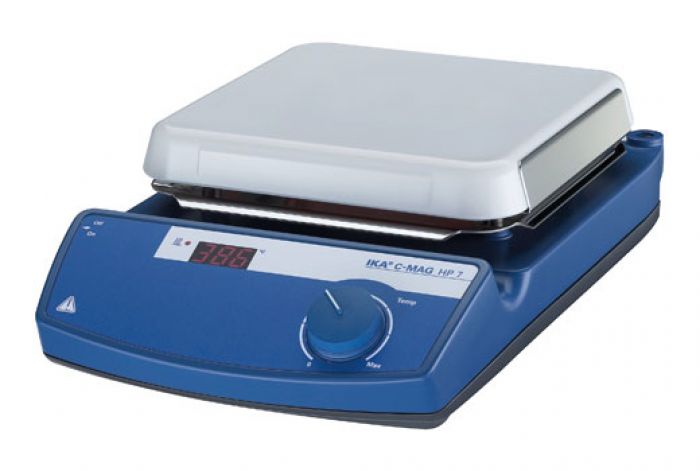

IKA C-Mag HP-7 kookplaat 180 x 180 mm 550°C

Specificaties

Specificaties

Merk	IKA
Type kookplaat	Enkelvoudig
Max. Temperatuur	550

Productbeschrijving

IKA C-Mag HP 7 kookplaat 180 x 180 mm 550°C



• New hotplate made of ceramic glass which offers excellent chemical resistance
• Fixed safety circuit of 550 °C
• Hot Top indicator >> hot surface warning to prevent burns!
• Exact temperature setting via digital display (LED)
• Digital error code display
• Elevated control panel for protection against leaking liquids



Technical data

Number of heating points	1
Heat output	1000 W
Heating temperature range	50 - 500 °C
Heat control	LED
Connection for ext. temperature sensor	ETS-D5
Volume max.	10 l
Heating rate (1 l H2O in h25)	5 K/min
Set-up plate material	ceramic
Set-up plate dimensions	180 x 180 mm
Dimensions (W x H x D)	220 x 105 x 330 mm
Weight	5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230/120/100 V
Frequency	50/60 Hz
Power input	1005 W
