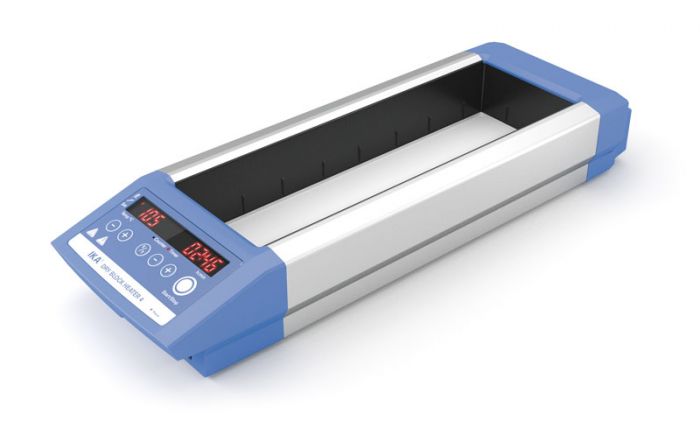

IKA Dry Block Heater 4 blokthermostaat 4 posities 120°C

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

IKA Dry Block Heater blokthermostaten

verschilldende uitvoeringen voor 1,2,3 of 4 inzetblokken
grote keuze aan inzetblokken
temperatuurbereik KT+5 tot 120°C

Informatie van IKA website

Digital block heater for one aluminum block provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations.

Stepless adjustable temperature up to 120 °C
Timer: Countdown, adjustable from 1 min to 99h 59min
Counter: Display of heating time
Highly versatile with a large number of blocks
Error code display
Fixed safety circuit
Acoustic signal at end of test

Technical Data

Number of blocks	1
Heat output	165 W
Heating temperature range	room temp. +5° - 120 °C
Temperature display	yes
Adjustment and display resolution	1 K
Connection for ext. temperature sensor	DIN 12 878
PT 1000 variation;DIN EN 60751 Kl. A	≤ ± (0,15 +0,002xITI) K
Temperature stability within the blocks at 37°C *	0.2 ±°C
Temperature stability within the blocks at 60°C *	0.2 ±°C
Temperature Uniformity @ 37°C *	0.2 K
Temperature Uniformity @ 60°C *	0.4 K
Heatingrate / Heat up time with external sensor *	5 K/min
Set-up plate material	Aluminium alloy
Set-up plate dimensions	96 x 76 mm
Fixed safety circuit	150 °C
Timer	yes
Time setting range	1 - 5999 min
* Measured in IKA DBH Testingblock	Refer Manual for more details
Dimensions (W x H x D)	151 x 73 x 228 mm
Weight	1 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
USB interface	no
RS 232 interface	no
Voltage	220 - 240/115 V
Frequency	50/60 Hz
Power input	165 W
