IKA EasySyn 5000 Starter Reactor systeem

EasySyn 5000 Starter Reactor system

EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.

Our EasySyn 5000 Starter package comprises a complete reactor system for use in the laboratory. The high quality of the used materials allows operation at temperatures from -50 to 200 °C and up to a negative pressure of 25 mbar.

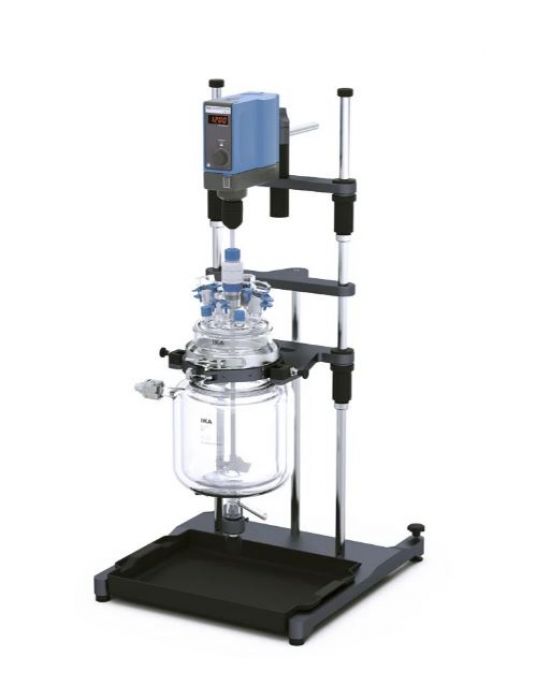

EasySyn 5000 Starter includes:

Ergonomically designed stand system for quick and easy exchange of reactor vessels and adjustment of the working height to your body size.

DN 150 vessel clamp for mounting the reactor vessel

Double-walled 5000 ml reactor vessel made of chemically resistant borosilicate 3.3 glass with bottom discharge valve

Spring-loaded valve spindle of the drain valve to prevent glass breakage

Reactor lid with various openings (1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23) for flexible adaptation to the desired application

DN 150 clamp ring and DN 150 FEP-coated O-ring to ensure chemical resistance

Powerful overhead stirrer EUROSTAR 60 digital with 60 Ncm, including keyless chuck for easy and fast mounting of the stirring tool

PTFE-coated propeller stirrer for optimum mixing and chemical resistance

High-quality stirrer guide for vacuum operation up to 25 mbar.

To complete your system, you get all the complementary components from a single source: overhead stirrers, circulators, vacuum pumps and controllers, sensors and automation software. All from IKA and all perfectly matched to each other.
