IKA HBC 10 Basic thermostaatbad 200°C 8-13 liter

Art.Nr.

L034135000

Temperatuurbereik KT+10 tot 200°C (-20°C met externe koeling; niet inbegrepen) Badvolume 8-13 liter Met circulatiepomp Afmetingen (bxhxd) 275 x 456 x 500 mm Gewicht 18 kg Vermogen 2650 W USB/RS232 interface voor registratie via PC

Bekijk alle specificaties

excl. BTW 3.808,-

Catalogusprijs 4 433,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

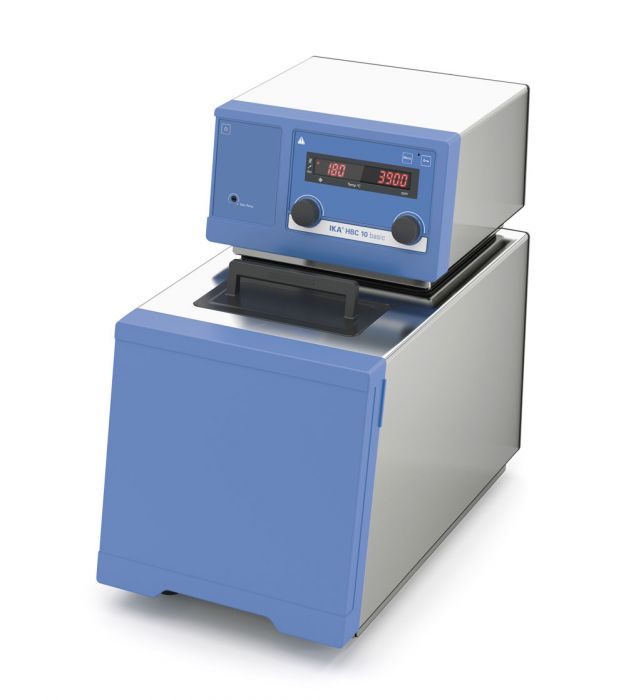

IKA HBC 10 Basic thermostaatbad

The HBC 10 basic heated bath circulator heats up to a maximum temperature of 200 °C. It is equipped with a high-quality stainless steel bath with a filling volume of 8 - 13 litres. The large surface of the radiator allows for an optimum heat exchange and a smooth warming of the medium. Thanks to the superior isolation, heating up times are remarkably fast. The easy to clean bath has a front drain valve for safe emptying. To drain the system, a hose is connected so that the user does not have direct contact with the tempering fluid With customer safety as a priority, the HBC 10 basic is UL certified and conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876.

Temperature range: 20 – 200 °C
Temperature accuracy: ± 0.02 K
Integrated cooling coil
Adjustable safety circuit
Powerful, speed-controlled pressure/suction pump
Push and turn buttons for an intuitive menu navigation
Large easy-to-read LED display for pump speed and temperature
External temperature probe PT 100 included
Optical and acoustic warning functions
USB / RS 232 interface for pc control and documentation using labworldsoft® and for online firmware updates
