IKA HBR 4 LR cont water & oliebad 4 liter met magneetroerder

Art.Nr.

L030001849

Temperatuur KT - 200°C
Roersnelheid 150 - 800 rpm
Binnendiameter 200 mm, hoogte 160 mm
Vermogen 1000W
Afmetingen (bxhxd) 340 x 250 x 340 mm
Gewicht 4,4 kg
Wordt geleverd met een externe temperatuurvoeler PT1000.61

Roervlo niet inbegrepen

Bekijk alle specificaties

excl. BTW 4.487,-

Catalogusprijs 5 121,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	IKA
Max. volume per roerpositie (H2O)	4
Min. RPM	150
Max. RPM	800
Max. Temperatuur	200

Productbeschrijving

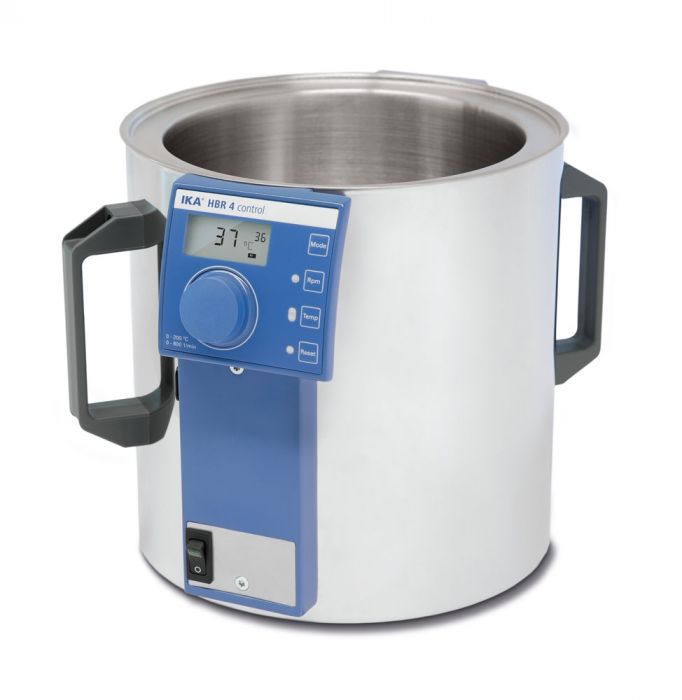

IKA HBR 4 LR Control water & oliebad 4 liter met magneetroerder

The heating bath is noted for:

Cylindrical bath shape
Heating elements integrated into the bath base
Heat transfer media can be low-viscous oil (50 mPas) or water, as desired
Useful volume: approx. 4 litres
Heat output: 1000 W
Two carry handles
Infinitely variable safety temperature limiter according to DIN 12877
Double-jacketed for burn protection
Digital display for target, actual and safety temperatures as well as speed
Integrated magnetic stirrer drive for circulating the tempering fluid, ensuring better heat distribution in the bath
RS232 interface

The heating bath is delivered with an external temperature sensor PT PT 1000.61 with a 6 mm diameter (for installation over the cover adapter LR 2000.60 in the laboratory reactor).
