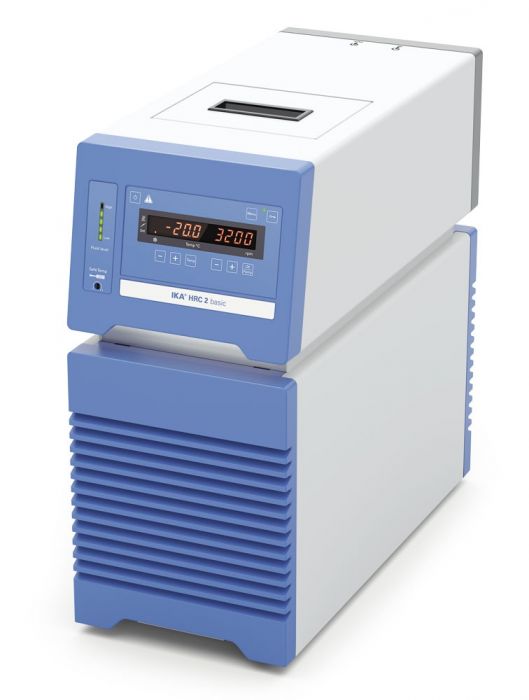

IKA HRC2 basic thermostaat -20-100 °C bad volume 4 liter
Art.Nr.
L035003742
IKA HRC2 basic thermostaat -20-100 °C bad volume 4 liter
Art.Nr.
L035003742
Hoog efficiente circulatie thermostaat ontworpen om objecten van -20 tot 100 °C te regelen.
Met LED Beeldscherm
Temperatuurstabiliteit 0.1 K
Koelvloeistof: R134a
Koelvermogen 400 W
Opwarmvermogen 1.500 W
Maximale flow 21 l/min
Pomp druk 0,5 bar
Zuigzijde 0,2 bar
Afmetingen (bxdxh) 220x475x525 mm
Gewicht 28.5 Kg
excl. BTW
4.361,-
5 078,-
(Alle prijzen zijn exclusief BTW)
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
IKA HRC2 basic thermostaat -30-100 °C bad volume 4 liter
The compact refrigerated and heating circulator HRC 2 basic is renowned for its high energy efficiency, a working temperature powerful infinitelyrange from -20°C to 100°C and a variable pressure and suction pump. The on-demand and speed-controlled compressor reduces noise and operating costs.
The high-quality Isolation of the 4 l bath allows fast heating and reduces heat input when cooling.
Using the external temperature control circuit is possible for up to 2.5 l thermofluid without a refill.
The integrated hopper and drain valve ensure a safe and clean handling of the thermofluid. The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.There is a drain valve on the front side of the bath. A hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid.
- Speed-controlled refrigeration system with 400 W cooling capacity
- Speed-controlled pump make of PEEK: (0.5 bar; 22 l/min)
- 1500 W heating capacity (1200 W @115V)
- Digital level indicator
- Safety classification III (FL) according to DIN 12876
- Adjustable temperature safety circuit
Interfaces:
- RS 232
- USB
Technical data
| Appliance type | Circulation thermostat |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Cooling agent | R134a |
| Cooling agent quantity | 230 g |
| Cooling agent pressure max. | 20 bar |
| Heat output | 1500 W |
| Cooling capacity (@20°C) | 400 W |
| Cooling capacity (@10°C) | 370 W |
| Cooling capacity (@0°C) | 320 W |
| Cooling capacity (@-10°C) | 240 W |
| Cooling capacity (@-20°C) | 130 W |
| Working temperature | -20 - 100 °C |
| Operating temperature min. | -20 °C |
| Operating temperature max. (with external heating) | 100 °C |
| Temperature display | yes |
| Temperature stability DIN 12876 (@+70°C) | 0.1 ±K |
| Temperature stability DIN 12876 (@-10°C) | 0.1 ±K |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | 0.1 ±K |
| Display resolution | 0.1 K |
| Set temperature resolution | 0.1 ±K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Adjustable safety circuit | 0 - 110 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Filling volume | 1.4 - 4.0 l |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.5 bar |
| Pressure pump (suction side) (0 liter flow) | 0.25 bar |
| Flow rate max. (0 bar back pressure) | 21 l/min |
| Pump connection | M16x1 |
| Calibration option | yes |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 220 x 475 x 525 mm |
| Weight | 28.5 kg |
| Permissible ambient temperature | 5 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 230 / 115 V |
| Frequency | 50/60 Hz |
| Power input | 1800 W |
