IKA KS3000 ic control schudincubator

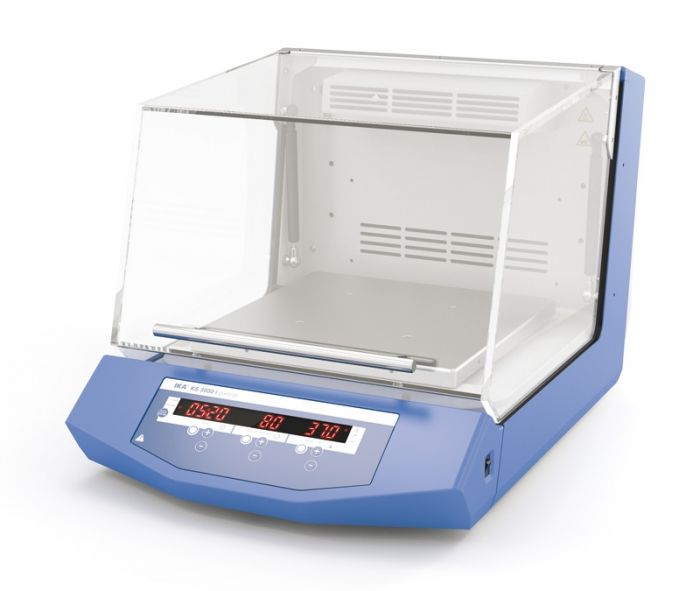

IKA KS 3000 ic control schudincubator

Geschikt voor volgende aantallen erlenmeyer en flessen:

• 56 x 25 ml
• 23 x 50 ml
• 23 x 100 ml
• 11 x 250 ml
• 9 x 500 ml
• 5 x 1000 ml

Innovative incubator shaker design allowing unattended* operation in a temperature-controlled environment.

• Large LED display for speed and time settings
• Controls with antimicrobial coating for reduction of bacteria
• Integrated PID temperature control (use of two PT 1000 temperature sensors)
• Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
• Electronic temperature and speed control
• Electronic timer switch: 0 – 999 h (set by the minute or by the hour)
• Optional built-in cooler for connection to an external cooling unit e.g. KV 600
• Unit switches off automatically if disturbed
• Unit stops automatically when hood is lifted
• Collecting tray with drain hose on rear of unit
• Simple operation
• All functions can be controlled and documented with labworldsoft®
• Attachements are not included in delivery, please order seperatly

• Shaking movement: orbital
• Orbital diameter: 20 mm
• Max. shaking weight (with attachment): 7,5 kg
• Infinitely adjustable speed range: 10 - 500 rpm
• Heat output: 1.000 W
• Temperature range: RT + 5 °C to 80 °C

Technical data

• Time setting max.: 59940min
• Speed min.: 10rpm
• Temperature range (inlet T>3°C): room temp. - 10° - 80°°C
• Height with open hood: 875mm
• Permissible ambient temperature min.: 15°C
• Heat output: 1000W
• Set temperature resolution: 0.1±K
• Permissible shaking weight (incl. attachment): 7.5kg
• Time setting min.: 1min, 1s
• Speed min (adjustable): 10rpm
• Shaker diameter: 20mm
• Permissible ambient temperature max.: 32°C
• Power input: 1120W
• Width: 465mm
• Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C): 0.5±K
• Depth: 695mm Weight: 37kg Voltage: 230/115/100V
• Temperature homogenity (5 vessel 0.5 L; RT 25°C, T=37°C): 0.5±K
• Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C): 0.05±K
• Speed deviation: 1%
• Operating area inner chamber: 330 x 330 x 258mm
• Total volume inner chamber: 50l
• Speed max.: 500rpm
• Permissible ON time: 100%
• Timer display: 7 segment LED
• Speed display: LED
• Touch function: no
• Temperature display: yes
• Protection class according to DIN EN 60529: IP 30
• Working with microtiter plates: no
• USB interface: yes
• RS 232 interface: yes
• Type of movement: orbital
• Shaking table lock: no
• Operating mode: timer and continuous operation
• Speed control: 1 RPM steps
• Connections for external cooling: yes
• Frequency: 50/60Hz Permissible relative humidity: 80%
• Height: 430mm
• Motor rating input: 45W Motor rating output: 10W
• Raw material front panel: ABS painted
• Raw material front foil: polyester
• Embedded cooling coil: yes
• Embedded cooling unit: no
• Raw material housing: Sheet metal powder coat
• Raw material hood: PMMA
• Timer: yes
