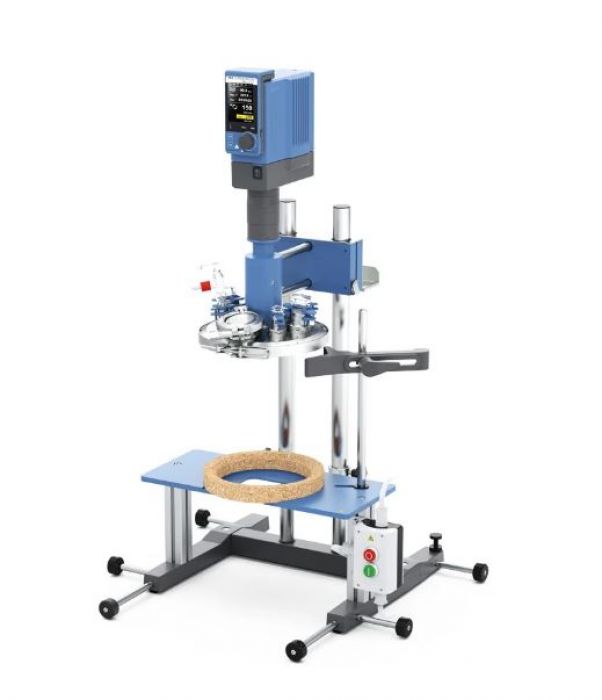

IKA LR-5.ST the High-Performer Laboratory reactor

Art.Nr.

L030100787

Pakket bestaande uit:
Statiefset met reactordeksel, veilighiedsschakelaar, bovenroerder Eurostar 200 control P4
Volume tot 5000 ml
Viscositeit tot 150.000 mPAs
Toerental 8 - 290 rpm
Materiaal in contact met medium: Borosilikatglas, FFPM, PTFE, Stahl 1.4571
Mogelijk vacuüm 25 mbar
Afmetingen (bxdxh) 460 x 430 x 1240 mm
Gewicht 25 kg
Levering zonder reactorvat, water/oliebad en andere hierboven niet vermelde toebehoren
Installatie en uitleg op aanvraag

Bekijk alle specificaties

Download de PDF

Sorry, dit product kunt u niet toevoegen aan uw winkelwagen.

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

LR-5.ST the High-Performer Laboratory reactor

Modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a 5 liter lab scale.

The system is particularly characterized by the stirrer mounting, which allows for a safe transfer of the higher motor torque.ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.

Suitable for vacuum operation up to 25 mbar

Seals in contact with the sample are made of solvent- and temperature-resistant perfluoroelastomer (FFPM)

Infinitely variable speed

Torque trend display for measuring changes in viscosity

Microprocessor-controlled speed regulation, enables steady speed, also under load

Removable Wireless Controller (WiCo) for remote and safe use in a fume hood

The reactor system enables stirring, dispersing and tempering in a single step under vacuum. This avoids the introduction of air during dispersion and increases the quality of the resulting product.

The LR-5.ST laboratory reactor system consists of:

Stand system

EUROSTAR 200 P4 control laboratory stirrer with higher torque

Safety shutdown

Reactor cover

Scope of delivery

LR.ST stand system

LR-5.ST reactor lid

EUROSTAR 200 P4 control

LR-2.SI

Clamp ring DN200

Cork ring

Tools
