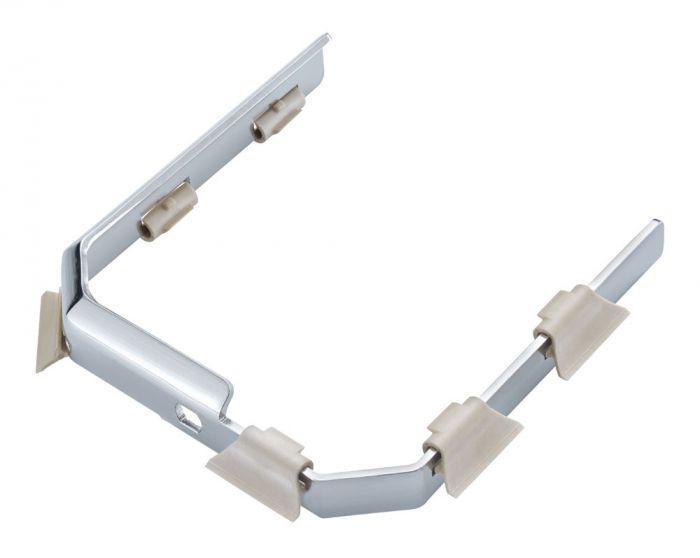

IKA LR1000.10 ankerroerder met PEEK schrapers
Art.Nr.
L034663100
IKA LR1000.10 ankerroerder met PEEK schrapers
Art.Nr.
L034663100
Geschikt voor gebruik in de LR1000 labreactoren
Min. usable volume when homogenizing: 400 ml
excl. BTW
 482,-
561,-
(Alle prijzen zijn exclusief BTW)
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
IKA LR1000.10 ankerroerder met PEEK schrapers
IKA labreactor LR1000 basic en controlpackages
- complete opstellingen
- digitaal display voor bewaking roersnelheid en temperatuur
- volume 500 - 1000 ml
- temperatuur tot 120 graden
- vacuüm tot 25 mbar
- uit te breiden met IKA T25 ultra-turrax
- toepassingen farma, food, chemie, cosmetica en levensmiddelen
Hulp nodig bij de juiste keuze?
Vul de IKA Questionaire in en stuur deze per mail terug naar ons laboratorium@dijkstra.net
Extra informatie van IKA website
The LR 1000 basic is a cost efficient, modular laboratory reactor designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The reactor is especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 ºC. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. A PT 100.5 temperature sensor and the corresponding receptacle LR 1000.61 for the lid are included with this package.
- Digital display for monitoring the speed and temperature
- Expandable for use with the ULTRA- TURRAX® T 25 digital (Accessory)
- Standard joint fittings on the lid: 1x NS 29, 3x NS 14 for flexible adaptation of further equipment
- Vacuum valve included with delivery
- Anchor stirrer with PTFE-scrapers available (Accessory)
- Connections to attach a cooling source to the back of the unit
- Manual adjustable safety circuit
- Integrated safety shutdown when vessel or lid is removed from the base
Technical data
| Usable volume min. | 500 ml |
| Usable volume max. | 1000 ml |
| Working temperature max. | 120 °C |
| Attainable vacuum | 25 mbar |
| Viscosity max. | 100000 mPas |
| Speed range | 10 - 150 rpm |
| Support rod diameter (with integrated fastening on stand) | 16 mm |
| Material in contact with medium | AISI 316L, 1.4571, borosilicate glass 3.3, PTFE, PEEK, FKM |
| Reactor vessel openings (units/standard) | 1/NS 29/32, 3/NS 14/23 |
| Dimensions (W x H x D) | 443 x 360 x 295 mm |
| Weight | 16 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Analog output | no |
| Voltage | 230/115 V |
| Frequency | 50/60 Hz |
| Power input | 1200 W |
| Adjustable safety circuit max. | 210 °C |
| Adjustable safety circuit min. | 50 °C |
| Connection for ext. temperature sensor | PT 100 |
| Control accuracy with sensor | 0.2 ±K |
| Cooling medium permissible operating pressure | 1 bar |
| Cooling medium temperature min. | 3 °C |
| Display for operation with ext. sensor | yes |
| Heat control | LED |
| Heat control accuracy | 1 ±K |
| Heat output | 1000 W |
| Heating temperature max. | 180 °C |
| Nominal torque | 3 Nm |
| Permissible ON time | 100 % |
| Safety cutout | yes |
| Safety temperature display | LED |
| Speed control | 1 RPM steps |
| Speed deviation | 5 ±rpm |
| Speed display | 7 segment LED |
| Speed min (adjustable) | 10 rpm |
| Temperature display | yes |
| Temperature measurement resolution | 0.1 K |
| Timer | yes |
| Timer display | 7 segment LED |
| Type of cooling | flow |
| no |
