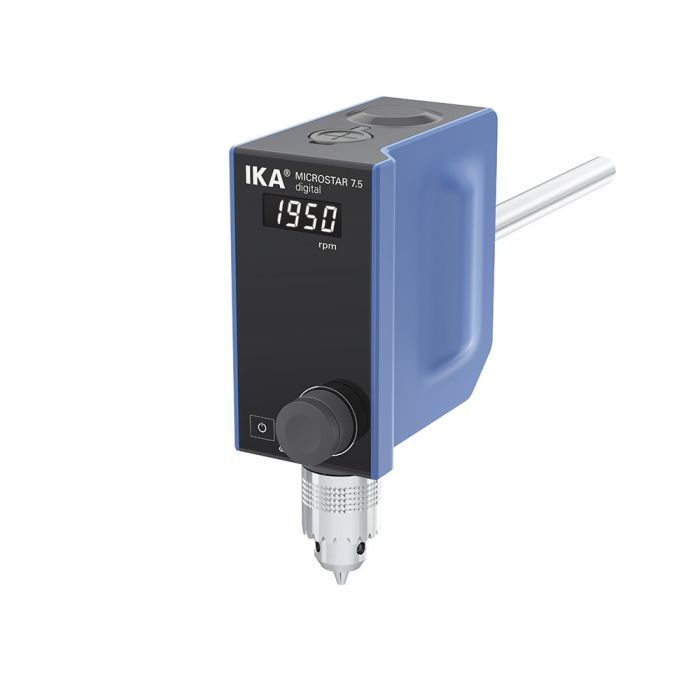

IKA MICROSTAR 7.5 digital bovenroerder 5 liter 4.000 mPas
Art.Nr.
L035004715
IKA MICROSTAR 7.5 digital bovenroerder 5 liter 4.000 mPas
Art.Nr.
L035004715
Met digitaal display
Maximaal 5 liter (water)
Viscositeit maximaal 4.000 mPas
Traploze toerentalbereik 50 tot 2.000 rpm
Doorsteekbare roerwerk assen
Afmetingen (lxbxh) 60 x 173 x 126 mm
Gewicht 1.2 kg
Statief en roerbladen optioneel
excl. BTW
937,-
1 069,-
(Alle prijzen zijn exclusief BTW)
| Merk | IKA |
|---|---|
| Viscositeit - mPas | 4.000 |
| Volume | 5 liter |
IKA MICROSTAR 7.5 digital bovenroerder 5 liter 4.000 mPas
The space-saving high performers from IKA MICROSTAR and MINISTAR series have been complemented by additional models. The new and easy-to-use stirrers convince with perfect basic functionalities, as well as with a compact design.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:
Compact design
The reduced design and the focus on the most essential aspects make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions.
Constant torque
All models of the IKA MICROSTAR and MINISTAR series guarantee a constant torque over the entire rpm range. The new devices are available in six different versions with rpms of up to 2,000 rpm and a torque of up to 80 Ncm.
Ease of operation
Operation takes place using a stable rotary knob. The display clearly shows the rotational speed.
Rapid updates
Regular software updates can be undertaken rapidly and simply via the USB interface.
Technical data
| Stirring quantity max. per stirring position (H2O) | 5 l |
| Motor rating input | 32 W |
| Motor rating output | 22 W |
| Motor principle | Brushless DC |
| Speed display | LED |
| Speed min. | 50 rpm |
| Speed min. | 0/50 rpm |
| Speed max. | 2000 rpm |
| Viscosity max. | 4000 mPas |
| Output max. at stirring shaft | 15.7 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 7.5 Ncm |
| Torque max. at stirring shaft at 60 1/min (overload) | 7.5 Ncm |
| Torque max. at stirring shaft at 100 1/min | 7.5 Ncm |
| Torque max. at stirring shaft at 1.000 1/min | 7.5 Ncm |
| torque I max. | 7.5 Ncm |
| Speed range I (50 Hz) | 50 - 2000 rpm |
| Speed range I (60 Hz) | 50 - 2000 rpm |
| Speed control | Turning knob |
| Setting accuracy speed | 1 ±rpm |
| Deviation of speed measurement n > 300rpm | 1 ±% |
| Deviation of speed measurement n < 300rpm | 3 ±rpm |
| Stirring element fastening | chuck |
| Plug-in coupling (Ø) | 5.5 mm |
| Chuck range diameter | 0.5 - 8 mm |
| Hollow shaft, inner diameter | 8.5 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Nominal torque | 0.075 Nm |
| Timer display | none |
| housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 60 x 173 x 126 mm |
| Weight | 1.18 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 32 W |
| Power input standby | 0.3 W |
| DC Voltage | 24 V= |
| Current consumption | 1300 mA |
