IKA myPlate magneetroerder zonder verwarming 1,5 liter

Art.Nr.

L035005156

Maximaal 1,5 liter (water)
Snelheid 0 tot 2000 rpm (digitaal instelbaar)
Afmetingen (bxhxd) 150 x 30 x 160 mm
Opzetplaat ø 135 mm (glas)
Set-up plaat met eigen design te bestellen
Gewicht 0,5 kg

Bekijk alle specificaties

excl. BTW 363,-

Catalogusprijs 414,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	IKA
Max. volume per roerpositie (H2O)	1,50
Min. RPM	0
Max. RPM	2.000

Productbeschrijving

IKA myPlate magneetroerder zonder verwarming 1,5 liter

IKA myPlate combines the excellent technical features of the popular and proven IKA magnetic stirrers colour squid and big squid with the option of creative individualization.

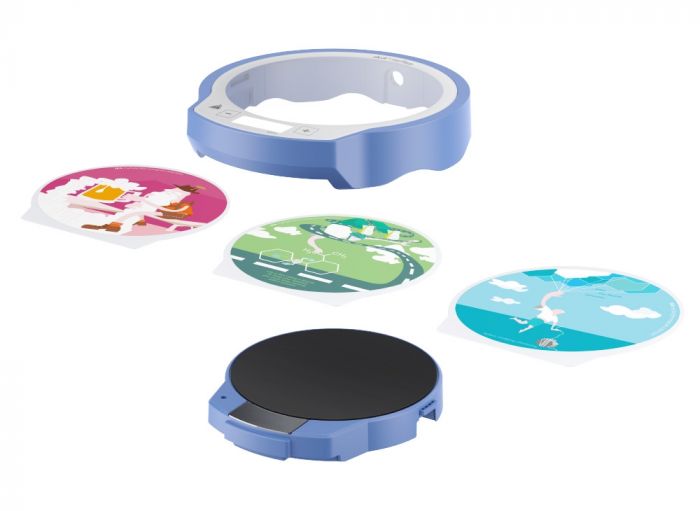

Personal interchangeable frame
Design the set-up plate of the IKA myPlate by yourself. You receive the device with a decorative image template, that can be exchanged easily through the convenient interchangeable frame. Some people have family photos on their desk - you convert one of the best magnetic stirrers from your day-to-day lab work into a canvas for your favorite pictures.

Proven high functionality
Apart from stirring your samples with IKA myPlate on a creative surface, you get all good features of this strong stirrer, just as you are used to from IKA.

High chemical resistance
Electronically controlled motor
Digital speed indicator
Speed range between 100 and 2500 rpm

Technical data

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	1.5 l
Motor rating output	2 W
Direction of rotation	left
Speed display set-value	LED
Speed display actual-value	LED
Speed control	Touch key
Speed range	0 - 2500 rpm
Setting accuracy speed	10 rpm
Stirring bar length max.	30 mm
Self-heating of the hotplate by max. stirring (RT:22°C/duration:1h)	2 +K
Set-up plate material	glass
Set-up plate dimensions	Ø 135 mm
Dimensions (W x H x D)	152 x 30 x 164 mm
Weight	0.5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	4 W
Power input standby	1 W
DC Voltage	12 V=
Current consumption	300 mA
