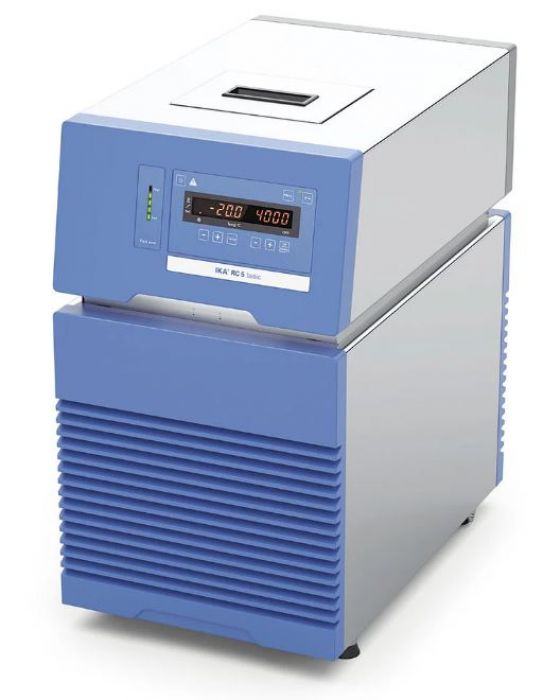

IKA RC5 basic koelthermostaat -30°C bad volume 7 liter

RC 5 basic

Powerful recirculating chiller, designed for external cooling applications up to -30°C.The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a comparatively small working space in the lab.The speed-controlled PEEK pump allows an indirect, continuous adjustment of the maximum pressure and flow rate. Due to its excellent temperature stability of about ± 0,1 K, the RC 5 can handle even sophisticated applications. The isolated, high-quality 7l bath has an integrated hopper and drain valve, ensuring a safe and clean handling of the thermofluid. A hose can be connected to empty the bath in order to avoid direct contact with the thermofluid. The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.

Key Features

Speed-controlled refrigeration system with 1400 W cooling capacity (@20°C)

Natural thermofluid R290

Designed for cooling applications up to -30°C - RT

Extended operating temperature range until 80°C

Excellent temperature stability of about ± 0,1K (@-10°C)

Speed-controlled pump made of PEEK: (0,6 bar; 31l/min)

Digital level indicator

Interfaces: RS 232 and USB

Scope of delivery

RC 5 basic

Hose olive NW 8 (2 pcs.)

Hose olive NW 12 (2 pcs.)

USB Cable - USB A to Micro-B, 2 m
