IKA S25N - 10G schacht voor ultra-turrax T25
Art.Nr.
L030594000
IKA S25N - 10G schacht voor ultra-turrax T25
Art.Nr.
L030594000
voor volumes van 1 tot 100 ml
lengte 105 mm, stator 10 mm
materiaal PTFE, AISI 316L
geschikt voor emulsies en suspensies
excl. BTW
1.231,-
1 362,-
(Alle prijzen zijn exclusief BTW)
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |

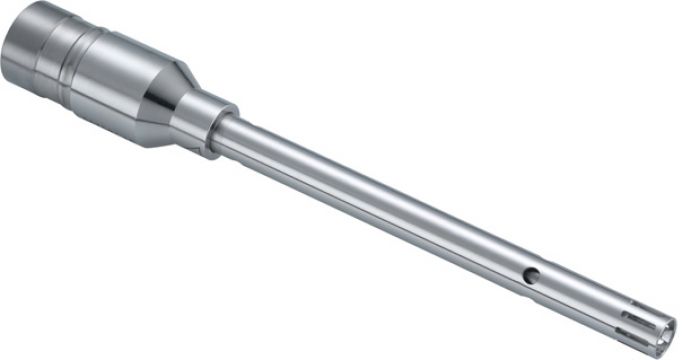

IKA S 25 N - 10 G Dispersing element
- Suitable for dispersing instrument T 25 digital
- Working range: 1 - 100 ml
- Stator diameter 10 mm
- Immersion depth 22 - 85 mm
- Materials in contact with medium: PTFE, AISI 316L
- Suitable for solvents
- Max. temperature: 180 °C
- Sterilization methods: all methods
Technical Data
| Volume range min. (H2O) | 0.001 l |
| Volume range max. (H2O) | 0.1 l |
| Stator diameter | 10 mm |
| Rotor diameter | 7.5 mm |
| Gap between rotor and stator | 0.35 mm |
| allowable Speed max. | 25000 rpm |
| Circumferential speed max. | 9.8 m/s |
| Immersion depth min. | 22 mm |
| Immersion depth max. | 85 mm |
| Shaft length | 105 mm |
| Material in contact with medium | PTFE, AISI 316L |
| pH min. | 2 |
| pH max. | 13 |
| Suitable for solvents | yes |
| Suitable for abrasive substances | yes |
| Working temperature max. | 180 °C |
| Sterilization methods | all methods |
| Ultimate fineness, suspensions min. | 10 µm |
| Ultimate fineness, suspensions max. | 50 µm |
| Ultimate fineness, emulsions min. | 1 µm |
| Ultimate fineness, emulsions max. | 10 µm |
