IKA S25N - 25G schacht voor ultra-turrax T25

Specificaties

Specificaties

Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

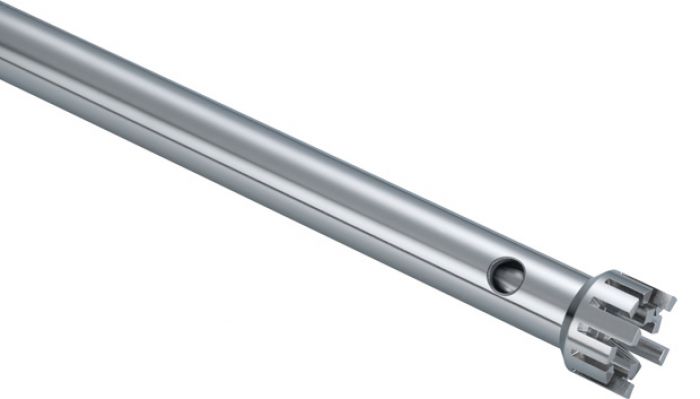

IKA S 25 N - 25 G Dispersing element

• Suitable for dispersing instrument T 25 digital
• Working range: 50 - 2.000 ml
• Stator diameter: 25 mm
• Immersion depth: 40 - 165 mm
• Materials in contact with medium: PTFE, AISI 316L
• Suitable for solvents
• Max. temperature 180 °C
• Sterilization methods: all methods

Technical Data

Volume range min. (H2O)	0.05 l
Volume range max. (H2O)	2 l
Stator diameter	25 mm
Rotor diameter	17 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	22.2 m/s
Immersion depth min.	40 mm
Immersion depth max.	165 mm
Shaft length	194 mm
Material in contact with medium	PTFE, AISI 316L
pH min.	2
pH max.	13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	180 °C
Sterilization methods	all methods
Ultimate fineness, suspensions min.	15 µm
Ultimate fineness, suspensions max.	50 µm
Ultimate fineness, emulsions min.	1 µm
Ultimate fineness, emulsions max.	10 µm
