IKA T65 Digital Ultra-turrax 2 - 50 liter

Art.Nr.

L034234500

Geschikt voor volumes van 2 tot 50 liter
Maximale viscositeit 5000 mPas
Toerental 1000 - 9500 rpm met digitaal display
Elektronische bescherming tegen overbelasting
Roestvrij staal dispergeerelementen kunnen snel en gemakkelijk worden gereinigd (niet inbegrepen)
Geluidsniveau zonder schacht 75 dB(A)
Vermogen 2600 W 3 x 400 V
Afmetingen (bxhxd) 300 x 390 x 400 mm
Gewicht 30 kg
Levering zonder dispergeerelementen / schachten

Bekijk alle specificaties

excl. BTW 10.400,-

Catalogusprijs 12 109,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

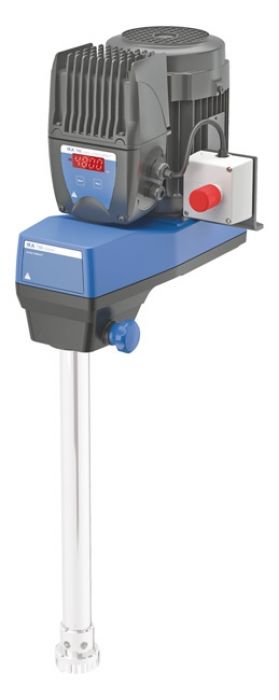

IKA T65 Digital Ultra-turrax

Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations with digital speed display. It offers a wide speed range from 1000 – 9,500 rpm that enables users to work at high circumferential speeds even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

Digital speed display
Electronic speed control
Electronic overload protection
Cables and plugs not included in the delivery.
Plug-in connectors facilitate exchange of dispersing elements
Stainless steel dispersing elements for use under vacuum and pressure
Error code display

Technical Data

Motor rating input	2600 W
Motor rating output	2200 W
Volume range min. (H2O)	2 l
Volume range max. (H2O)	50 l
Viscosity max.	5000 mPas
Speed range	1000 - 9500 rpm
Reversible direction of rotation	no
Speed display	7 segment LED
Speed control	stepless
Noise without element	75 dB(A)
Process type	batch
Dimensions (W x H x D)	300 x 390 x 400 mm
Weight	30 kg
Permissible ambient temperature	30 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
Voltage	3 x 400/3 x 230 V
Frequency	50/60 Hz
Power input	2600 W
