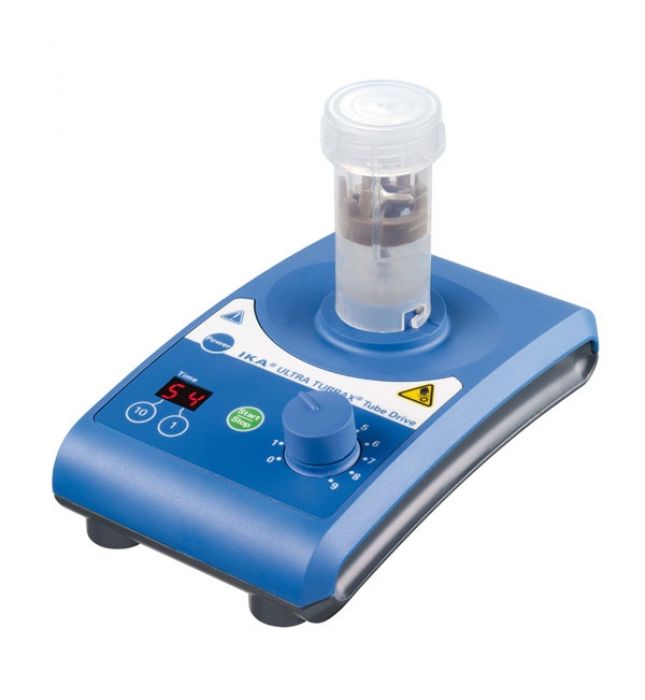

IKA UTTD Ultra Turrax Tube Drive tot 50 ml volume

Art.Nr.

L033646000

Analoge dispencermotor voor het dipergeren van vloeistoffen in dispolable buizen zonder kans op cross contaminatie
Volume buizen 2 - 15 ml en 15 - 50 ml
Toerental 300 - 6000 rpm
Afmetingen (B x H x D) 100 x 40 x 160 mm
Gewicht 0,75 kg
Levering zonder buizen

Bekijk alle specificaties

excl. BTW 777,-

Catalogusprijs 859,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

IKA UTTD Ultra Turrax Tube Drive

Unique and universal dispersing, stirring, homogenizing and grinding system with sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odor substances under defined conditions (time, energy, volume).

Disperse, stir, homogenize and grind using a single drive unit
No possibility of cross-contamination
Sealable disposable sample tubes
No cleaning required
High level of user safety
Suitable for individual use and use in series
Gamma-sterilized tubes
Tubes with pierceable membrane covers
Tubes with 2 - 15 ml and 15 - 50 ml
Reproducible tests
Patented

Application areas: Human medicine, pathology, veterinary medicine, animal hygiene institutes, Foodstuffs testing laboratories, Toxicology, Medical research, Pharmaceutical research, Biological research, Tumour biology, Chemistry, Cosmetics

Technical data

Motor rating input	20 W
Motor rating output	17 W
Viscosity max.	5000 mPas
Speed range	300 - 6000 rpm
Speed deviation	10 %
Speed display	scale
Speed control	stepless
Noise without element	50 dB(A)
Process type	batch
Dimensions (W x H x D)	100 x 40 x 160 mm
Weight	0.75 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	20 W
DC Voltage	24 V=
Current consumption	800 mA
