IKA VG 3.31 Epjes opzet voor Vortex 3

Art.Nr.

L033344300

Geschikt voor 54 microliter tubes (Epjes)

excl. BTW 72,-

Catalogusprijs 82,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Productbeschrijving

Informatie van de IKA website

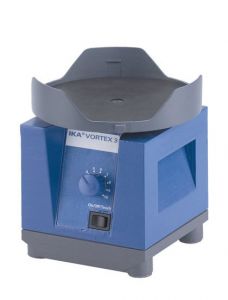

New vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation.

Wide speed range, infinitely adjustable
Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately
Attachments securely click onto appliance in any position
Special strap (VG 3.36) ensures easy handling of round/Erlenmeyer flasks
Sturdy metal zinc die cast casing
Compact design
Short-time operation activated by pressing attachment (touch function)
Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)
Eccentric with ball bearings
Suitable for continuous operation with low self heating thanks to self ventilation of motor

Type of movement	orbital
Shaker diameter	4 mm
Motor rating input	58 W
Motor rating output	10 W
Permissible ON time	100 %
Speed min (adjustable)	500 rpm
Speed range	0 - 2500 rpm
Speed display	none
Timer	no
Operating mode	continuous operation
Touch function	yes
Shaking table lock	no
Working with microtiter plates	yes
Number of microtiter plates	1
Dimensions (W x H x D)	127 x 136 x 149 mm
Weight	4.5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	no
Analog output	no
Voltage	200 - 240/100 - 120/100 V
Frequency	50/60 Hz
Power input	60 W
