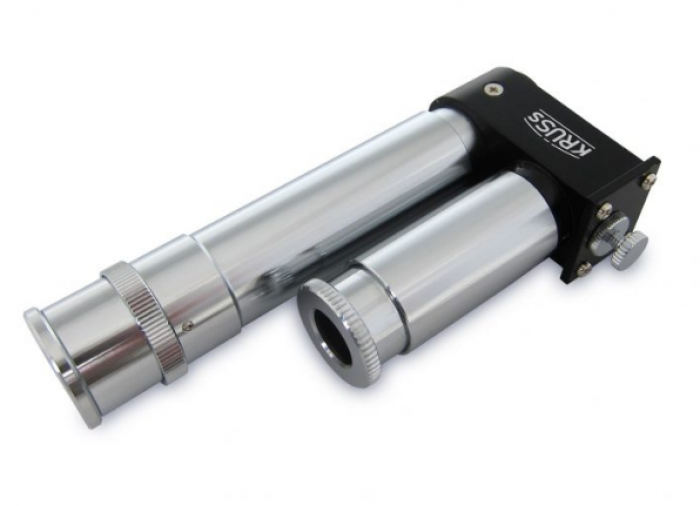

Krüss HS1504 hand-held spectroscoop

The handheld spectroscope HS1504 model has a high intensity Amici prisim, which shows a sharp spectrum. It is used to observe emission and absorption spectra and provides maximum unambiguous measurement results thanks to its uncomplicated measurement method. Due to its brighter spectrum, even fine lines can be clearly recognized. An optional scale illumination can be attached. In gemmological investigations, the hand spectroscope is used to identify rubies, spinels, garnet, alexandrite or red tourmaline. It is also ideal for demonstrations in the classroom or for individual and comparative observations, as well as spectral analysis. It is also suitable for checking the line spectra of gas discharge lamps.

Basic data

Angel of dispersion: 7°

Linear Dispersion: 60 mm

Measurement range

Wavelength scale: 400 – 750 nm

Scale division: 10 nm

Dimensions (w x h x d): 42 mm x 115/65 mm x 20 mm

Device weight: 233 g
