Krüss MSZ5000-T-IL-TL-LED stereo zoom microscoopset

Art.Nr.

L75MSZ5000-T-IL-TL-LED

Geschikt voor toepassingen in geavanceerde inspectie, kwaliteitscontrole, onderwijs en onderzoek
Beschikt over 10x wide field oculairen met gezichtsveld van 20 mm
Zoomobjectief met traploze vergroting van 0,7x tot 4,5x (zoomverhouding 6,4:1)
Totale vergroting van 7x tot 45x, optioneel uitbreidbaar tot 14x – 90x met 20x oculairen
Optische kop in 45° hoek met dioptriecorrectie aan beide zijden en trinoculaire fototubus voor camera-aansluiting
Grote werkafstand van circa 90 mm voor gebruik met gereedschap of grotere monstersGeïntegreerde LED-verlichting

Afemtingen bxhxd 200 x 390 x 310 mm
Gewicht 7,1 kg

Bekijk alle specificaties

excl. BTW 750,-

Catalogusprijs 790,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Krüss
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

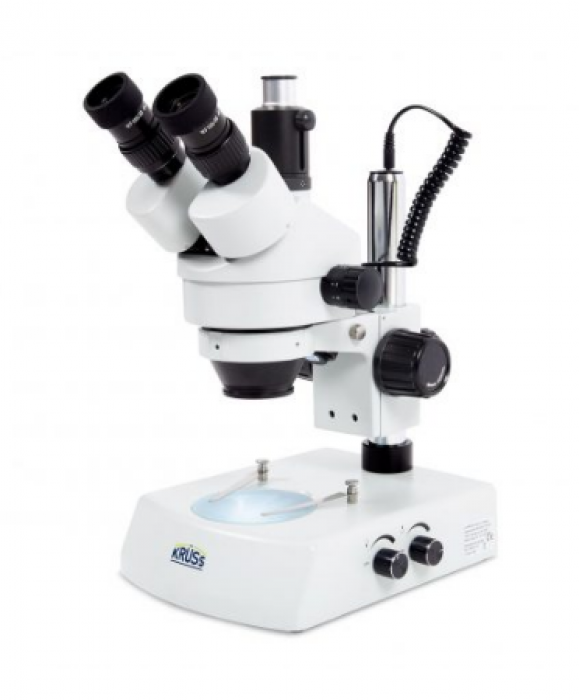

Stereo microscope MSZ5000-T-IL-TL-LED

The zoom stereo microscope with tube is ideal for the professional examination of Electronics, precision mechanics, plastics and biological samples. It is used for inspection, assembly, analysis, soldering, polishing and fine machining – an excellent tool for quality control. The large zoom range, the large working distance and the wide depth of field make it very comfortable to work in many areas. It offers a continuous zoom from 0.7X to 4.5X .The models have a photo and video tube and can be used for microscope photography or video recording.

This makes it possible to document results or record test series, as is the case in quality control in the food industry, for example.The robust metal housing facilitates reliable work even in harsh environments. Various magnification eyepieces and attachment lenses for adjusting magnification and working distance are available as accessories.

Basic functions

Can be connected to a microscope, photo or video cameraIncreased working distanceIncident and transmitted light (LED

)Infinitely variable zoom 7X to 45X total magnification

Attachment lenses optionally available for adjusting the maximum magnification or for further magnification of the working distance

Wide range of accessories
