Krüss PRB21S bypass proces refractometer 1.3200–1.5600 nD

Art.Nr.

L75PRB21S

Meetbereik 1.3200 – 1.5600 nD 0-95 %Brix
Nauwkeurigheid ±0.0002nD ±0,2 %Brix
Resolutie 0.0001 nD 0,1 %Brix
Meetinterval in te stellen van 3 - 60 seconden
Eenvoudige als bypass in te passen in het productieproces
Data kunnen via PLC of display (niet meegeleverd) uitgelezen worden
Gewicht 3 kg

Bekijk alle specificaties

excl. BTW 5.336,-

Catalogusprijs 5 855,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Krüss
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

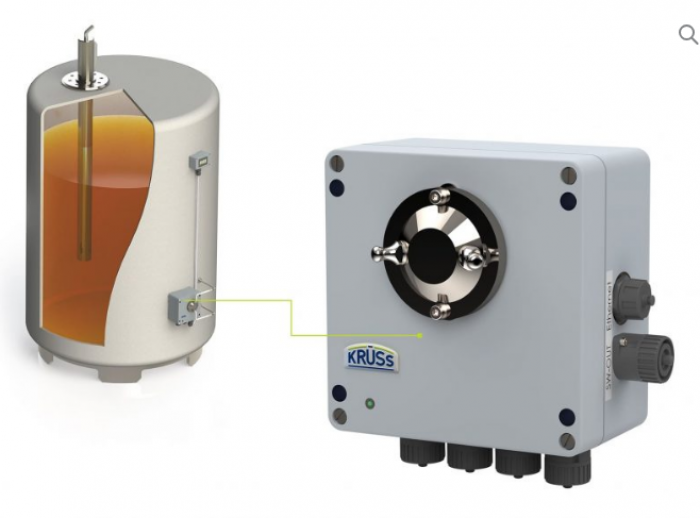

The PRB21S (bypass) is connected to the process using hoses. In this way it is possible, either by pumping or hydrostatic pressure, to guide the sample as a partial flow of the main process (bypass) through the measuring cell and to measure it without interruption. The PRB21S model is used in the chemical, petrochemical, automotive, aircraft manufacturing, food, sugar and beverage industries, as in wastewater control.

Basic functions

Measurement in refractive index, %Brix or a user-definable scale

Automatic temperature compensation (%Brix and freely definable for customer-specific products)

Integrated sensor for temperature monitoring

Stainless steel measurement chamber and sample prism, made of scratch-proof and chemical-resistant sapphire

Manual cleaning or via customer process cleaning, CIP capable

Suitable for process temperatures up to 60 °C

Simple connection to the process control system or PLC via serial or two-part potential-free current interface (0/4-20 mA)

Interfaces: RS232; RS232 for display, 2x analog 0(4)-20 mA; relay input, 2x relay output
