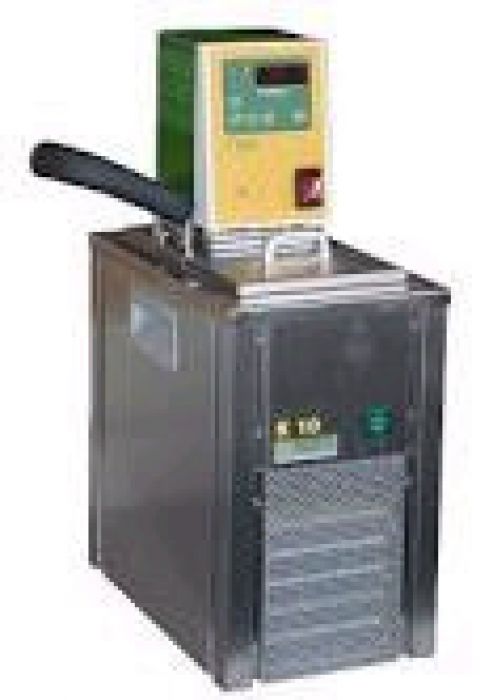

LRT K10-T100 tafel cryostaatbad 3 liter -10 tot +100°C

Opvolger van...

• Medingen K10-T100

Specificaties

Specificaties

Merk	Medingen - LRT
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

LRT tafel cryostaten tot -10°C

• K 10 series: bath volume 3 l, bath depth 130 mm
• customized special designs are possible after inquiry

type	K 10 T 100	K 10 T 200
temperature range	-10...100°C	-10...100°C
temperature stability (at 70°C in water)	±0,1 K	±0,01 K
bath volume	3 l	3 l
bath opening	135 mm x 105 mm	135 mm x 105 mm
bath depth	130 mm	130 mm
temperature display	LED	digital, graphic display
resolution	0,1 K	0,1 K
temperature setting	digital	digital, touchpanel
resolution	0,1 K	0,1 K
temperature sensor	PTC	Pt 100, linearised
interface	-	RS 232 (V.24)
external sensor	-	port for Pt 100
program controller	-	2 applets, each with 10 time / temperature segments
pump - max. flow rate	5 l/min	8 l/min
pump - max. pressure	0,12 bar	0,20 bar
heating power	1.000 W	1.800 W
cooling power (at 0°C)	130 W	130 W
power supply	230 V / 50Hz	230 V / 50Hz
safety class (DIN 12876)	3	3
width (approx.)	205 mm	205 mm
depth (approx.)	335 mm	335 mm
height (approx.)	540 mm	540 mm
empty weight (approx.)	17,5 kg	17,5 kg

Accessoires

1.

   LRT T100 inhangthermostaat 1000W 100°C

   excl. BTW  987,-
