Thermo CO2/O2-Broedstoof Cytoperm 2 O2 3-90%
Art.Nr.
L0151011660
Inhoud 220 liter
Met 180C desinfectiesysteem
Met O2 regeling 3-90%
Kompleet met 6-delig gassluissysteem,
gedeeld interieur en halve bladen
Afmetingen intern (bxdxh) 66,9 x 60,7 x 58,8 cm
Gewicht 107 kg
excl. BTW
42.224,-
52 780,-
(Alle prijzen zijn exclusief BTW)
- Heraeus Cytoperm 2
Merk | Heraeus - Thermo |
---|---|
SafeSens pH monitoring | Nee |
Stapelbaar | Ja |
Timelapse functionaliteit | Nee |
Licht | Nee |
Volume | 220 liter |
Max. Temperatuur | 180 |

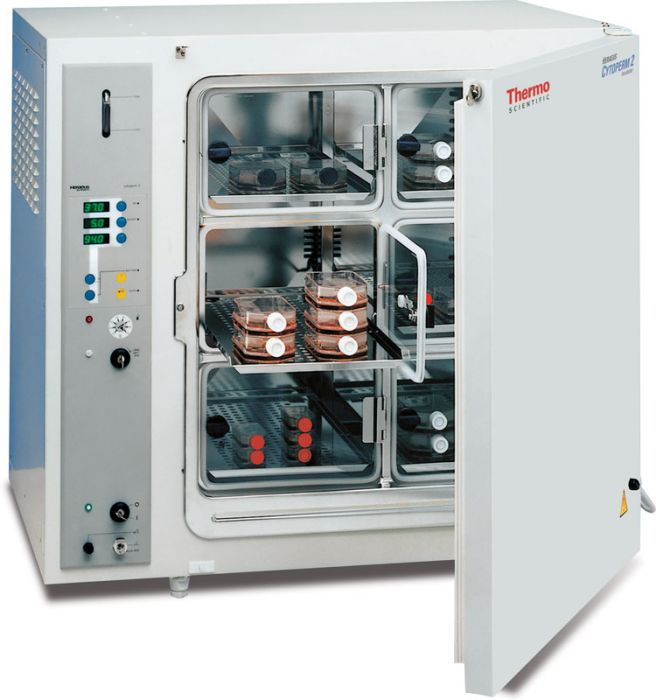

Thermo Heraeus CO2/O2-Broedstoof Cytoperm 2 O2 3-90%
Handle sensitive or infectious samples simply while maxmizing safety and protecting against contamination with the Thermo Scientific™ Cytoperm™ 2 CO2 Gassed Incubator.
- Specification Sheet: Why is automated heat decontamination a better solution for sterilizing my CO2 incubator than an automated chemical disinfection, such as in situ hydrogen peroxide vapor?
- Technical Bulletin: Back to Basics: CO2 incubators
Key Features:
- Cytoperm 2 controls temperature, CO2 content and relative humidity levels
- Convenient hot air disinfection at 180°C without the need for removing fittings or sensors
- External water reservoir—no open water surface areas inside, effectively counteracting contamination
- Air-jacket heating system maintains constant and stable temperatures on all interior surfaces
- Six individually sealed glass doors minimize changes to the atmosphere during opening, shortens recovery times significantly and reduces contamination risk
- Unique pyrolytic germ barrier sterilizes external humidity water prior to introduction into the culture chamber
- Full humidity control and display
- Constant environmental parameter monitoring
- Thermal Conductivity (TC) CO2 sensor for excellent long-term stability and reliability
Compatible with:
- Support frame, height 300mm (50031348)
- Support frame, height 780mm (50029597)
- Rack to stack two units (50053628)
- Additional stainless-steel shelf, half width including two shelf supports (50029943)
- Gas cylinder monitor with audible signal, 120/230 V 50/60 Hz (50046033)
- CO2 cylinder pressure regulator (03429937)
- N2 cylinder pressure regulator (03429942)
- O2 cylinder pressure regulator (03429943)
Technical data
Chamber Material | Electropolished stainless steel |
---|---|
Disinfection Time | 180°C/3 hr. |
CO2 Concentration Range | 0 to 20% |
CO2 Sensor Technology | TC |
Oxygen Control | 3-90% |
O2 Sensor Technology | zirconium oxide |
Humidity Delivery | external reservoir |
Relative Humidity | fully controllable, ambient to 90% |
Temperature Range (Metric) | ambient +5C to 50C |
Height (English) Exterior | 30.5 in. |
Height (Metric) Exterior | 66.9cm |
Width (English) Exterior | 36.2 in. |
Width (Metric) Exterior | 60.7cm |
Length (English) Exterior | 33.7 in. |
Length (Metric) Exterior | 58.5cm |
Height (English) Interior | 23 in. |
Height (Metric) Interior | 58.8cm |
Depth (English) Interior | 26.3 in. |
Depth (Metric) Interior | 66.9cm |
Width (English) Interior | 23.1 in. |
Width (Metric) Interior | 60.7cm |
Net Weight (English) | 235 lb. |
Net Weight (Metric) | 107kg/unit |
Shelves | 6/16 (supplied/max) |
Length (English) Shelf | 10.25 in. |
Length (Metric) Shelf | 26cm |
Width (English) Shelf | 19.7 in. |
Width (Metric) Shelf | 50cm |
Voltage | 230V |
Data Outputs | RS232 |
Cabinet Material | cold rolled steel |
Capacity (English) Shelf | 11.02 lb./shelf, 66.14 lb. total |
Capacity (Metric) Shelf | 5kg/shelf, 30kg total |
CO2 Concentration Control | ±0.1% |
Hertz | 50/60Hz |
Ports | 2cm access port in rear wall |
Capacity (English) | 7.7 cu. ft. |
Capacity (Metric) | 220L |
Item Description | CO2/O2 |
Shelf Material | Electropolished Stainless-steel |
Wattage | 1.2kw |
Dimensions (D x W x H) Interior | 26.3 x 23.1 x 23 in. (66.9 x 60.7 x 58.8cm) |
Capacity | 7.7 cu. ft., 220L |
Electrical Requirements | 230V 50/60Hz |
Dimensions (L x W x H) Exterior | 33.7 x 36.2 x 30.5 in. (58.5 x 60.7 x 66.9cm) |
