Vacuubrand BVC Basic G afzuigsysteem glazen fles

Specificaties
Merk	Vacuubrand
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

Vacuubrand BVC afzuigsystemen voor verwijderen van biologische vloeistoffen

Fluid aspriation systems: voor professioneel opzuigen en verwijderen van vloeistoffen in de biochemie, microbiologie en cellulaire cultuur technologie
Een bewezen systeem met alle benodigde accesories

Toepassingen

afzuigen van vloeistoffen uit microtiterplaten
afzuigen van vloeistoffen uit petrischalen
afzuigen van vloeistoffen uit cultuurflessen

BVC basic G

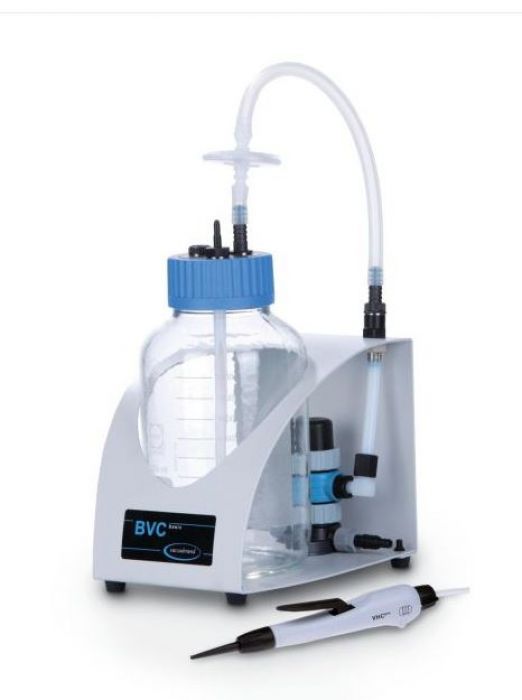

The BioChem-VacuuCenter BVC basic is designed for connection to an existing external vacuum source like a diaphragm pump or a vacuum network (e.g., VACUU·LAN^®) and does not require electric power. The chemical-resistant mechanical vacuum controller always ensures an optimal operating vacuum. The controller opens only when needed thus limiting the gas load on the vacuum source. The evaporation of collected liquid is minimized. The inlet tubing integrated in the bottle head reduces aerosol and foam formation and ensures a long service life of the hydrophobic protection filter. The aspiration system is available either as BVC basic with 4l PP bottle or as BVC basic G with 2l coated borosilicate glass bottle.

Performance features

mechanical vacuum regulator to provide optimum working vacuum and minimize the vapor load on the vacuum network
stable base and electricity-free operation for convenience
autoclavable collection bottle designed to reduce aerosol and foam formation; autoclavable quick-couplings available as accessory
aspiration hand set VacuuHandControl (VHC^pro) with flow-through suction tube - no contamination of handle by aspirated media
hydrophobic 0.2 micron sterilizable filter - contamination risks for the vacuum pumping system are greatly reduced; autoclavable as complete unit together with the collection bottle

Technical data

Technical data	Unit	BVC basic G
Vacuum controller		Mechanical vacuum controller
Control range		100 - 500 mbar
Collection bottle		2l Glass
Ambient temperature range (operation)	°C	10 - 40
Ambient temperature range (storage)	°C	-10 - 60
Max. back pressure (abs.)	bar	1.1
Inlet connection		Suction controller
Outlet connection		Hose nozzle DN 6-10 mm
Degree of protection		IP 54
Dimensions (L x W x H)	mm	230 x 180 x 430
Weight	kg	3.2
Items supplied		Complete fluid aspiration system for existing vacuum source, with automatic vacuum controll, hose nozzle DN 6/10 mm for connection to a vacuum supply, aspiration hand set VacuuHandControl VHC, collection bottle 2l made of glass, protection filter and manual.
Accessories		Suction Controller VacuuHandControl VHC^pro (688061) Extension kit second suction controller connection (699943) Quick-fit coupling suction controller to bottle (635807) Quick-fit coupling bottle to pump (635808) Protection filter 0.2 µm hydrophob (638266) Rubber vacuum tubing DN 8 mm (686001)

Fluid aspiration systems

The compact BioChem-VacuuCenter offers the perfect solution for safe, sensitive and efficient aspiration of supernatants in all application areas. The BVC basic is intended for connection to an external vacuum source. The BVC control and the BVC professional are equipped with a high performance, chemically resistant diaphragm pump. The vacuum level and thus the suction force at the hand control can be sensitively adjusted via a touch panel. In addition, the BVC professional features a non-contact liquid level sensor and self-closing quick couplings (4l PP bottle version). All systems are available either with a vacuum-resistant, autoclavable 4l PP bottle or with a 2l borosilicate glass bottle, e.g., for working with aggressive disinfectants such as chlorine bleach. All versions are ready for connection of a second hand control.

Flexibility and comfort

4l PP or 2l glass bottle - for a perfect fit with process protocols (glass version, e.g., for chlorine bleach)
compact size with control handle - for flexible, space-saving setup with perfect ergonomics
very low noise levels in operation - to work comfortably in daily routine
sensitive suction power adjustment via touch panel - for sample protection and reproducible results
vacuum pump that responds automatically to demand - no foot pedal switch needed

Economic efficiency

powerful chemical-resistant diaphragm vacuum pump with a very long service life even when working with aggressive disinfectants - minimal costs for maintenance and spare parts
ready to accept a second hand controller - double use for lower cost per user
high-quality components for trouble-free operation in continuous professional use

Safety

0.2 micron protection filter - high protection against contamination of the environment
hand controller with flow-through suction tube - no contamination of handle with aspirated media
collection flask made of PP or coated borosilicate glass - completely autoclavable, with 0.2 micron protection filter
2l borosilicate glass flask for high chemical resistance, with splinter-proof coating for safety and leakage protection
BVC professional includes liquid-level sensor to prevent aspiration of liquids into pump. Self-closing couplings (4l PP bottle version) for safe removal of bottle for change and transport
