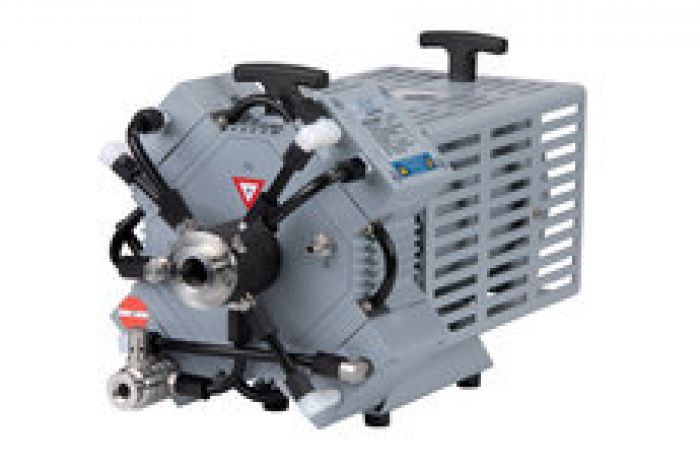

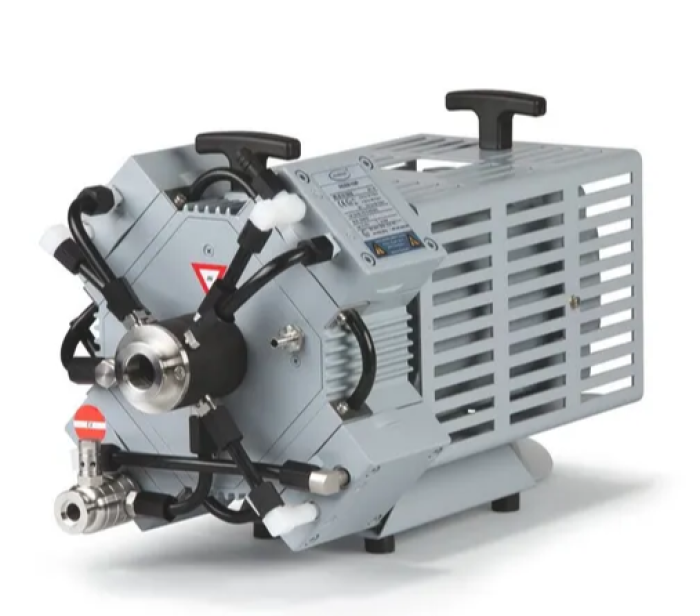

Vacuubrand MD 4C EX VARIO ATEX membraanpomp 3mbar 3,7m3/h

Art.Nr.

L0620696936

Chemisch bestendige Vario ATEX membraanpomp
ATEX conformiteit: Pomphuis: II 2G IIC T3 X Omgeving met inertgas spoelen : II 2G IIB T4 X Omgeving zonder inertgas spoelen: II 3G IIB T4 X Motor: II 2G EEx d IIB T4
Eindvacuüm: 3 mbar
Pompsnelheid: 3,7 m3/h
Vermogen: 250 Watt
Afmetingen (lxbxh): 440 x 265 x 305 mm
Gewicht: 29,3 kg
Aansluiting inlaat: kleinflens DN 25
Aansluiting uitlaat: kleinflens DN 16
Levering met 2 meter kabel zonder stekker
Geschikt voor aansturing via Vacuu-Select met Vacuubrand Box 100 en ATEX vacuümsensor (niet inbegrepen)

Bekijk alle specificaties

excl. BTW 9.747,-

Catalogusprijs 10 721,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Vacuubrand
Zuigvermogen in m3/h	3,70
Eindvacuüm mbar	3
Uitvoering pomp	extern Atex
Vacuümregeling	nee
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

Vacuubrand MD 4C EX VARIO membraanpomp

With the new ATEX VARIO^® chemistry diaphragm pumps and vacuum systems, the vacuum can be precisely controlled by the motor speed. The VARIO^® pump is driven by an additional control signal line. The optional vacuum controller CVC 3000 with system accessories (I/O-Module, supply / isolation amplifier) and ATEX vacuum sensor enable fully automatic evaporations without the need for parameter settings or user programming. With the adaptive control it finds the boiling pressure independently and adjusts the vacuum continuously and optimally according to the vapor pressure. The vacuum controller and system accessories are installed in a non-hazardous area.

Performance features

full advantage of ATEX chemistry diaphragm pumps
short process times due to hysteresis-free VARIO® vacuum control
VARIO®-pump operates on demand only as fast as necessary – minimal power consumption, extended maintenance intervals, silent operation
vacuum controller CVC 3000 (optional) for precise vacuum control and fully automatic processes
complete system accessories I/OModule, supply / isolation amplifier and ATEX vacuum sensor

Technical data

Technical data	Unit	MD 4C EX VARIO
Vacuum controller		without controller
Number of heads / stages		4 / 3
Max. pumping speed	m3/h	3.7
Max. pumping speed	cfm	2.2
Ultimate vacuum (abs.)	mbar/torr	3 / 2.3
Ultim. vac. (abs.) with gas ballast	mbar/torr	10 / 7.5
Integral leakage rate	mbar l/s	0.1
Ambient temperature range (operation)	°C	10 - 40
Ambient temperature range (storage)	°C	-10 - 60
Max. media temperature	°C	40
Max. back pressure (abs.)	bar	1.1
Inlet connection		Small flange KF DN 25
Outlet connection		Small flange KF DN 16
Rated motor power	kW	0.25
Max. operating current	A	3.2
Motor speed range	min-1	30 - 1500
Degree of protection		IP 54
Dimensions (L x W x H), approx.	mm	469 x 265 x 305
Weight, approx.	kg	26.6
Noise level at 50 Hz, typ.	dBA	53
ATEX conformity		Pumping chamber (pumped gases): II 2G IIC T3 X Environment with inert purge gas: II 2G IIB T4 X Environment without inert purge gas: II 3G IIB T4 X Motor: II 2G Ex d IIB T4 Gb
Items supplied		Pump completely mounted, ready for use, with manual, 2 m cable without plug
Accessories		PTFE tubing KF DN 16 (1000 mm: 686031) PTFE tubing KF DN 25 (1000 mm: 686033) Vacuum controller CVC 3000 Analog I/O module VACUU·BUS 4-20mA / 0-10V (635425) Signal conditioner 0-10V/4-20mA (635426) Power/input isolating amplifier 4-20mA (635427) Vacuum sensor ATEX 0.1 % FSO 4-20mA (635423) Vacuum sensor ATEX 0.5 % FSO 4-20mA (635424)
