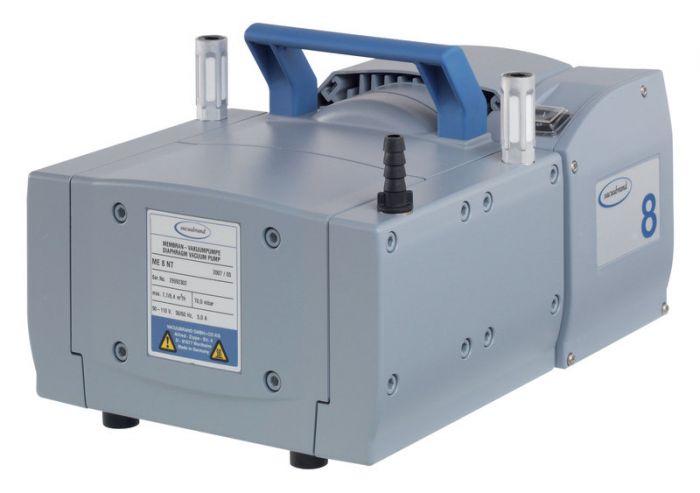

Vacuubrand ME8NT membraanpomp 70 mbar 7,3 m3/h
Art.Nr.
L0620734000
Vacuubrand ME8NT membraanpomp 70 mbar 7,3 m3/h
Art.Nr.
L0620734000
Niet chemisch bestendig
Eindvacuüm: 70 mbar
Pompsnelheid: 7,3 m3/h
Vermogen: 250 Wat
Afmetingen (lxbxh): 325 x 239 x 198 mm
Gewicht: 16,4 kg
Aansluiting inlaat: slangaansluiting Ø 10mm
Aansluiting uitlaat: geluiddemper
Eindvacuüm: 70 mbar
Pompsnelheid: 7,3 m3/h
Vermogen: 250 Wat
Afmetingen (lxbxh): 325 x 239 x 198 mm
Gewicht: 16,4 kg
Aansluiting inlaat: slangaansluiting Ø 10mm
Aansluiting uitlaat: geluiddemper
excl. BTW
2.590,-
2 923,-
(Alle prijzen zijn exclusief BTW)
| Merk | Vacuubrand |
|---|---|
| Zuigvermogen in m3/h | 7,30 |
| Eindvacuüm mbar | 70 |
| Uitvoering pomp | niet chemisch bestendig |
| Vacuümregeling | nee |
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Vacuubrand ME 8NT membraanpomp 70 mbar 7,3 m3/h
Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, and allow a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. These pumps with four heads provide very high pumping speed. The new NT-series features improved performance data.
Performance features
- contamination-free pumping and evacuation
- very high flow rate even near ultimate vacuum
- quiet operation
- very low vibration
- exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Technical data
| Technical data | Unit | ME 8 NT |
|---|---|---|
| Number of heads / stages | 4 / 1 | |
| Max. pumping speed at 50/60 Hz | m3/h | 7.3 / 8.1 |
| Max. pumping speed at 50/60 Hz | cfm | 4.3 / 4.8 |
| Ultimate vacuum (abs.) | mbar/torr | 70 / 52 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 2 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | 2 x silencer / G1/4" | |
| Rated motor power | kW | 0.25 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 325 x 239 x 198 |
| Weight | kg | 16.4 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| NRTL certification | Canada and the USA | |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Accessories | Rubber vacuum tubing DN 8 mm (686001) |
