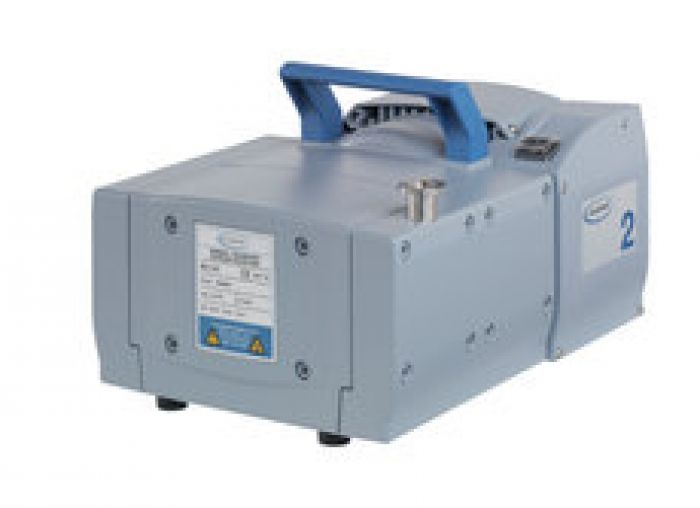

Vacuubrand MV2NT Membraanpomp 0,5 mbar 2,2 m3/h
Art.Nr.
L0620738000
Vacuubrand MV2NT Membraanpomp 0,5 mbar 2,2 m3/h
Art.Nr.
L0620738000
Niet chemisch bestendig
Eindvacuüm: 0,5 mbar
Pompsnelheid: 2,2 m3/h
Afmetingen (lxbxh): 325 x 239 x 198 mm
Gewicht: 16,4 kg
Aansluiting inlaat: kleinflens aansluiting DN 16
Aansluiting uitlaat: geluiddemper
Eindvacuüm: 0,5 mbar
Pompsnelheid: 2,2 m3/h
Afmetingen (lxbxh): 325 x 239 x 198 mm
Gewicht: 16,4 kg
Aansluiting inlaat: kleinflens aansluiting DN 16
Aansluiting uitlaat: geluiddemper
excl. BTW
3.028,-
3 417,-
(Alle prijzen zijn exclusief BTW)
| Merk | Vacuubrand |
|---|---|
| Zuigvermogen in m3/h | 2,20 |
| Eindvacuüm mbar | 0,50 |
| Uitvoering pomp | niet chemisch bestendig |
| Vacuümregeling | nee |
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Vacuubrand MV 2 NT
Four-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases when the need is to reach fractional millibar ultimate vacuums. All parts in contact with pumped vapors or gases are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of non-corrosive applications. The new NT-series pumps provide whisper-quiet and ultra-low-vibration operation, high leak-tightness and improved vacuum. The highly flexible, fabric-Performance features
- contamination-free pumping and evacuation
- high flow rate even near ultimate vacuum
- outstanding ultimate vacuum
- whisper quiet and ultra-low vibration
- exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Technical data
| Technical data | Unit | MV 2 NT |
|---|---|---|
| Number of heads / stages | 4 / 4 | |
| Max. pumping speed at 50/60 Hz | m3/h | 2.2 / 2.4 |
| Max. pumping speed at 50/60 Hz | cfm | 1.3 / 1.4 |
| Ultimate vacuum (abs.) | mbar/torr | 0.5 / 0.4 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Small flange KF DN 16 | |
| Outlet connection | Silencer / G1/4" | |
| Rated motor power | kW | 0.25 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 325 x 239 x 198 |
| Weight | kg | 16.4 |
| Noise level at 50 Hz, typ. | dBA | 50 |
| NRTL certification | Canada and the USA | |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Accessories | Stainless steel tubing KF DN 16 (1000 mm: 673336) |
