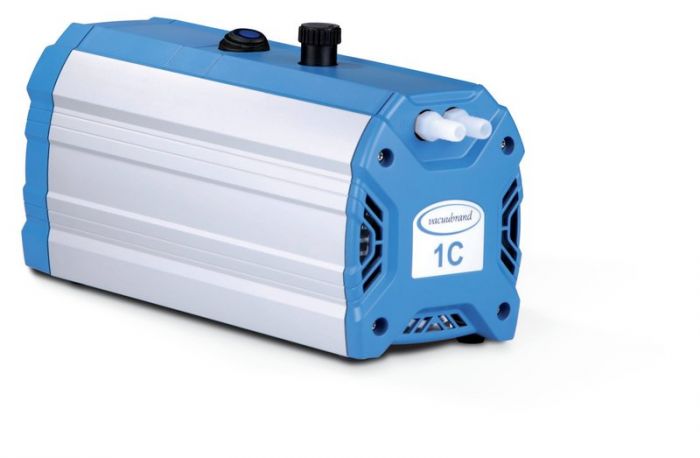

Vacuubrand MZ1C chemie membraanpomp 12 mbar 0,75 m3/h
Art.Nr.
L0620724100
Vacuubrand MZ1C chemie membraanpomp 12 mbar 0,75 m3/h
Art.Nr.
L0620724100
Chemisch bestendig
Eindvacuüm: 12 mbar
Pompsnelheid: 0,75 m3/h
Vermogen: 60 Watt
Afmetingen (lxbxh): 312 x 121 x 170 mm
Gewicht: 6,7 kg
Aansluiting inlaat: slangaansluiting Ø 10mm
Aansluiting uitlaat: slangaansluiting Ø 10mm
Ideaal ter vervanging van een waterstraalpomp
excl. BTW
1.361,-
1.745,-
1 745,-
(Alle prijzen zijn exclusief BTW)
- waterstraalpomp
| Merk | Vacuubrand |
|---|---|
| Zuigvermogen in m3/h | 0,75 |
| Eindvacuüm mbar | 12 |
| Uitvoering pomp | chemisch bestendig |
| Vacuümregeling | nee |
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Vacuubrand MZ 1C chemie membraanpomp 12 mbar 0,75 m3/h
Chemisch bestendige membraanpomp
- Dubeltrapspomp met uitmuntende bestendigheid tegen agressieve gassen.
- Fluisterstil en zeer laag trillingsniveau
- Eenvoudig te gebruiken door top gemonteerde schakelaar
- Te gebruiken i.p.v. een waterstraalpomp
Meer informatie van Vacuubrand website
Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The two-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE-sandwich diaphragms increase reliability and extend operating life. The MZ 1C pump is equipped with a gas ballast valve for continuous condensate purge increasing the pumping capability of condensable vapors. It features slim design for space-saving installation and good vacuum performance. A manual vacuum regulator valve with dial gauge for adjustment of pumping speed and ultimate vacuum is available as accessory.
Performance features
- outstanding chemical resistance and superior vapor tolerance
- convenient, quick and simple to use due to the new top mounted power switch
- optimized vacuum even with gas ballast for continuous purge
- whisper quiet and very low vibration
- maintenance-free drive system and proven long diaphragm life
Technical data
| Technical data | Unit | MZ 1C |
|---|---|---|
| Number of heads / stages | 2 / 2 | |
| Max. pumping speed at 50/60 Hz | m3/h | 0.75 / 0.9 |
| Max. pumping speed at 50/60 Hz | cfm | 0.4 / 0.5 |
| Ultimate vacuum (abs.) | mbar/torr | 12 / 9 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 20 / 15 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | kW | 0.06 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 312 x 121 x 170 |
| Weight | kg | 6.7 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Accessories | Chemistry vacuum regulator valve unit for ME/MZ 1C (696843) Rubber vacuum tubing DN 8 mm (686001) |
