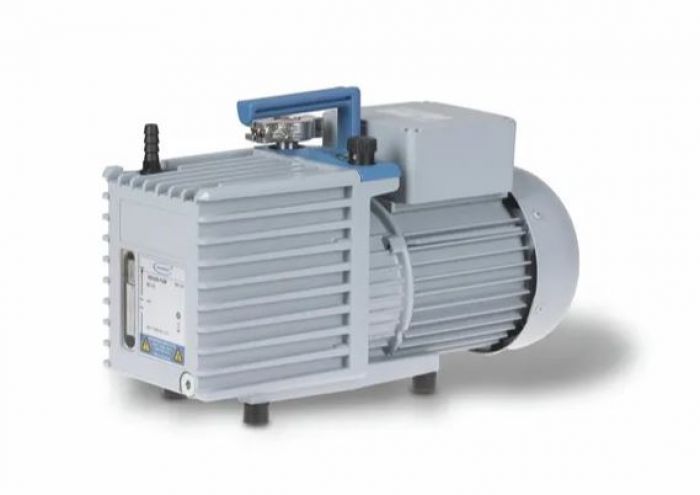

Vacuubrand RE 2.5 draaischuifpomp 3 x 10-1 mbar 2,3 m3/h

Art.Nr.

L0620797150

Enkeltraps 220V
Eindvacuüm: 3 x 10-1 mbar
Pompsnelheid: 2,3 m3/h
Vermogen: 180 Watt
Afmetingen (lxbxh): 316 x 125 x 190 mm
Gewicht: 10,2 kg
Aansluiting inlaat: kleinflensaansluiting DN16
Aansluiting uitlaat: slangaansluiting Ø 10mm

Bekijk alle specificaties

excl. BTW 1.448,-

Catalogusprijs 1 634,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Vacuubrand
Zuigvermogen in m3/h	2,30
Eindvacuüm mbar	0,30
Uitvoering pomp	niet chemisch bestendig
Vacuümregeling	nee
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

RE 2.5 Rotary vane pump

high flow rates even at vacuum levels approaching ultimate vacuum

very good ultimate vacuum even with gas ballast

vacuum-tight at switch-off; external anti-suckback valve not needed

large oil volume: Long intervals between oil changes

ease of maintenance due to telescopic design

Rotary vane pump in action

The one-stage pumps RE 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate. Typical applications are lyophilization, fine vacuum distillation and evacuation of small volumes, e.g., for utilization of µ-focus x-ray tubes or filling with pure gases.
