Vacuubrand VACUU·SELECT + VACUU·VIEW extended, KF DN 25
Art.Nr.
L0620700110
Vacuubrand VACUU·SELECT + VACUU·VIEW extended, KF DN 25
Art.Nr.
L0620700110
Geschikt voor het regelen van fijn vacuüm

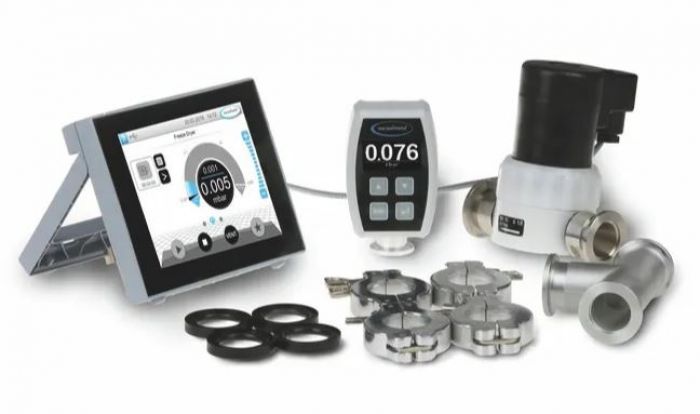

Set bestaande uit:
Vacuu-View tot 0,001 mbar
Vacuu-Select
Vacuümregelventiel VV-B 15C
T-stuk en kleinflens DN 25 aanslutingen
Afmetingen (lxbxh)
152 x 127 x 41 mm
Gewicht circa 0,6 kg
Levering zonder vacuümpomp
excl. BTW
2.920,-
3 295,-
(Alle prijzen zijn exclusief BTW)
| Merk | Vacuubrand |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
VACUU·SELECT + VACUU·VIEW extended, KF DN 25 Package
The VACUU·SELECT fine vacuum control packages provide an easy-to-use vacuum control option for work down to 10-3 mbar. These packages include the VACUU·SELECT controller with fine vacuum gauge, a chemical-resistant inline isolation valve (VV-B 15C), and the accessories required for connection to your vacuum system via small flange (KF) connections.
VACUUBRAND offers fine vacuum control packages with two different small flange connections.
The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6.
The KF DN 25 fine vacuum control package is configured for use with our RE / RZ 9 rotary vane pumps and Vacuu Pure screw pumps.
With its intuitive, application-based user interface, the controller allows you to quickly get your fine vacuum process under control. For advanced processes, pre-defined applications can be modified, and new applications can be created to optimize your process conditions. The included inline solenoid valve and sensor are automatically configured via the proprietary VACUU·BUS system.
