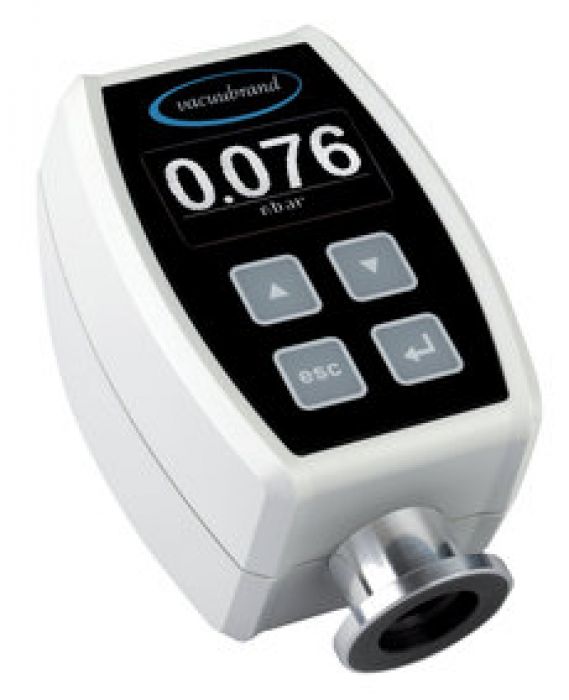

Vacuubrand Vacuu-View Extended vacuummeter 1080 - 0.001 mbar

Art.Nr.

L0620683210

Meetbereik: 1080 - 0.001 mbar Met geïntegreerde vacuümsensor gemaakt van aluminiumoxide keramiek met een uitstekende weerstand tegen corrosie en een superieure stabiliteit op lange termijn Meetonzekerheid : <+/- 0.2 mbar Eenvoudige bediening door middel van menu gestuurd display (instelling druk: torr mbar/verlichting display enz.) Verlicht eenvoudig afleesbaar dsiplay Met kleinflens DN16 aansluiting Levering inclusief slangnippel adapter DN6/10 (in te schoeven in de kleinflens) Levering inclusief netadapter

Bekijk alle specificaties

excl. BTW 998,-

Catalogusprijs 1 126,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Vacuubrand
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

Vacuubrand Vacuu-View Extended digitale vacuummeter

For the monitoring of your vacuum processes in the rough and fine vacuum range, the new vacuum gauges VACUU·VIEW extended are perfect! The heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in the wide range from atmosphere down to 10^-3 mbar.

Performance features

precision and chemical resistance in an exceptionally wide range from atmosphere down to 10^-3 mbar, one gauge only for both rough and fine vacuum
compact design with integrated sensors, one piece equipment for direct connect at point of interest
the heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in a wide range
illuminated display, easy to read
display with menu driven handling, easy to use e.g. for unit settings

Technical data

Technical data	Unit	VACUU·VIEW extended
Vacuum sensor		Integr.
Upper measuring limit	mbar/torr	1100 / 825
Lower measuring limit	mbar/torr	0.001 / 0.001
Measurement principle		Ceramic diaphragm sensor + ceramic jacketed Pirani sensor
Accuracy of measurement		+- 15% of indicated value in the range from 0.01-10 mbar / +-3mbar for > 10mbar
Temperature coefficient		+- 0.2 mbar/hPa/0.15 torr /K
Ambient temperature range (operation)	°C	10 - 40
Ambient temperature range (storage)	°C	-10 - 60
Max. media temp. for continuous operation / short times	°C	40 / 80
Material of outer housing		Robust plastic housing with good chemical resistance
Degree of protection		IP 54
Cable length of external power supply	m	2
Dimensions (L x W x H)	mm	103 x 62 x 50
Weight	kg	0.19
Items supplied		Vacuum gauge with integrated vacuum sensor, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual.
Accessories		Rubber vacuum tubing DN 10 mm (686002) PTFE tubing KF DN 16 (1000 mm: 686031) Stainless steel tubing KF DN 16 (1000 mm: 673336) DAkkS calibration with first delivery (900214) DAkkS recalibration (900215)
