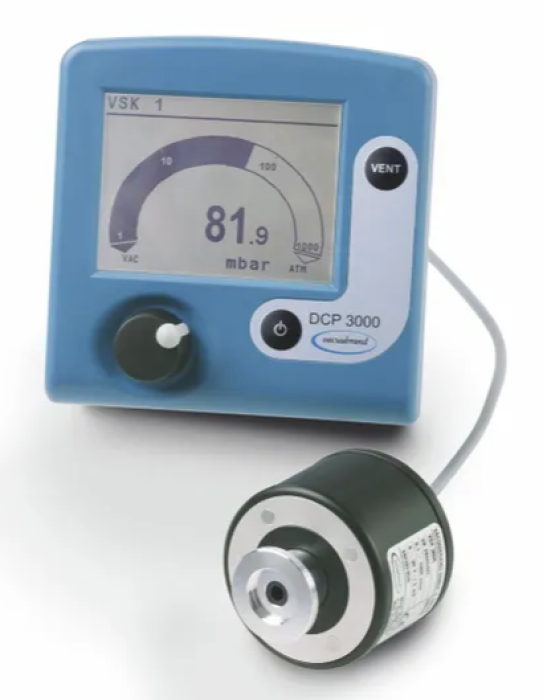

Vacuubrand vacuümmeter DCP3000 VSK3000 set 1080 – 0,1 mbar

Art.Nr.

L0620683170

DCP3000 vacuümmeter met meetsensor VSK 3000 Meetbereik : 1080 – 0,1 mbar Meetonzekerheid : <+/- 1 mbar Meetprincipe: capacitief Afmetingen (lxbxh): 144 x 124 x 115 mm Gewicht: 0,44 kg Aansluiting: kleinflens DN 16

Bekijk alle specificaties

excl. BTW 1.337,-

Catalogusprijs 1 509,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Vacuubrand
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

Vacuubrand DCP 3000 vacuümmeter met meetsensor VSK 3000

universele digitale-/analoge vacuümmeter met externe chemisch resistente meetsensor
nauwkeurige, zeer stabiele vacuümmeter met grote display.
robuust, uitlezing omschakelbaar tussen mbar, hPa en Torr.
datalogger met een opname capaciteit van 32.000 meetgegeven
meetbereik : 1080 – 0,1 mbar
meetonzekerheid : <+/- 1 mbar
meetprincipe: capacitief
afmetingen (lxbxh): 138 x 124 x 115 mm
gewicht: 0,44 kg
aansluiting: kleinflens DN 16 en slangaansluiting Ø 6-10mm I.D
maximaal aansluiten van 4 meetsensoren type VSK 3000 (Atm. - 0,1 mbar) en 4 meetsensoren type VSP 3000 (Atm. - 10 ^-3 mbar)

The DCP 3000 is an outstanding vacuum gauge for rough and fine vacuum. A large illuminated display shows the measured values of all sensors by a simple turn of a button. The VSK 3000 vacuum sensor with ceramic diaphragm measures from atmospheric pressure down to 0.1 mbar. It displays absolute pressure independent of gas type, is very corrosion resistant and has an outstanding accuracy and long term stability. Simultaneous connection of up to eight vacuum sensors allows flexible measuring on the spot. The DCP 3000 communicates with external components via the VACUU·BUS^® digital bus system. It is characterized by fully automatic configuration, unified plug connections and cable lengths of up to 30 m. In addition the DCP 3000 offers relative pressure measurements (VSK 3000 as reference) and a data logger feature for up to 32,000 data values.

Performance features

up to four gauge heads VSK 3000 (Atm. - 0.1 mbar) and four VSP 3000 (Atm. - 10^-3 mbar) can be simultaneously connected
VSK 3000 capacitive alumina ceramic diaphragm vacuum sensor with very high chemical resistance, offers gas-type independent absolute pressure measurement
outstanding measuring accuracy, temperature and long term stability
rugged, splash-water proof vacuum sensor, also for rough operating conditions
relative pressure measurement option (VSK 3000) and data logger feature (up to 32,000 values, readout via RS 232C)

Technical data

Technical data	Unit	Set DCP 3000 + VSK 3000
Vacuum sensor		VSK 3000
Cable length of vacuum sensor	m	2
Upper measuring limit	mbar/torr	1080 / 810
Lower measuring limit	mbar/torr	0.1 / 0.1
Measurement principle		Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Accuracy of measurement		< +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.)
Temperature coefficient		< 0.07 mbar/hPa/0.05 torr /K
Ambient temperature range (operation)	°C	10 - 40
Ambient temperature range (storage)	°C	-10 - 60
Max. media temp. for continuous operation / short times	°C	40 / 80
Material of outer housing		Robust plastic housing with good chemical resistance
Degree of protection		IP 20
Degree of protection of front side (also built-in version)		IP 42
Max. power for VACUU·BUS^® (24V DC)		4 A
Cable length of external power supply	m	2
Interface		RS 232C
Dimensions (L x W x H)	mm	144 x 124 x 114
Weight	kg	0.44
NRTL certification		Canada and the USA
ATEX-approval		II 3G IIC T3 X Internal Atm. only
Items supplied		Vacuum gauge with external vacuum sensor VSK 3000, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual.
Accessories		PTFE tubing KF DN 16 (1000 mm: 686031) DAkkS calibration with first delivery (900214) DAkkS recalibration (900215) Vent valve VBM-B (674217) Vacuum sensor VSK 3000 (636657) Vacuum sensor VSP 3000 (636163) Rubber vacuum tubing DN 6 mm (686000) Rubber vacuum tubing DN 8 mm (686001)
