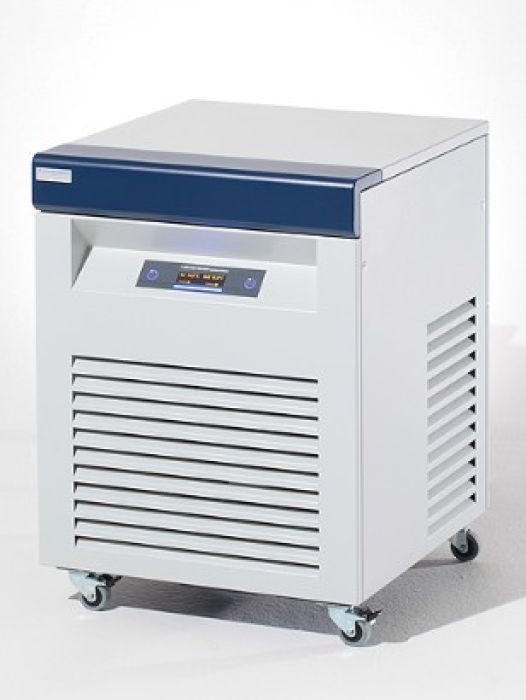

Van der Heijden 121-A-RB400 chiller 2.100 Watt 16-22°C

Van der Heijden 121-A-RB400 koelthermostaat 2.100 Watt

KÜHLMOBIL 1.2kW to 2.9kW

A powerful but quiet, small circulatory cooler available in different cooling powers. A cooling unit cools the circulating water and/or antifreeze mixture in a small container, from where it is supplied to the cooling unit by a circulation pump.

The 15 or 25L container is easily accessible and can be filled from under the hinged cover on the top of the unit.

This type of unit is supplied with a 3.5 or 4.5 bar pump with up to 10 or 40 l/min.  Other pump pressures or temperature ranges are available. The chiller can be supplied as an air or water cooled version.  .  Many other options and accessories are available, please see the accessories and options section.  The air inlet is on the front face. The air outlet is at the rear.

Flow rate display is available as an option, installed on the return point, even with bypass control, the number of litres per minute flowing through the unit being cooled can be read.  The bypass can be adjusted accurately. The volume flow will be monitored digitally in the front display of the operating panel

Application examples

• Rotary evaporators
• Water baths
• Calorimetry
• TGA
• Electron microscopy
• AAS-devices
• ICP-devices
• Extraction
• Instrument cooling
• Fish tank temperature maintenance
• Laser cooling
• Sputtering systems
• Deposition vacuum equipment

Features & advantages

• 100% water savings in tap water
• No sewage costs for waste water
• Cooling water temperature, pressure and flow can be regulated
• Constant water quality, no limescale, no algae
• Compact 15/25 litre tank
• Almost noiseless
• Temperature display in O-LED capacitive touch pad controller
• Lockable castors
• Acoustic and text description alarm Display
• Ambient temperature up to 32°C
• Quick lock 9mm hose connections
• Available with higher pump pressure and many different options and accessories
• Power regulation by microprocessor controlled proportional regulator, this means high temperature stability of water pre-run temperature optional (0.1 K/°C)
• All the models switch off completely in the event of a fault or water failure.

Technical data
