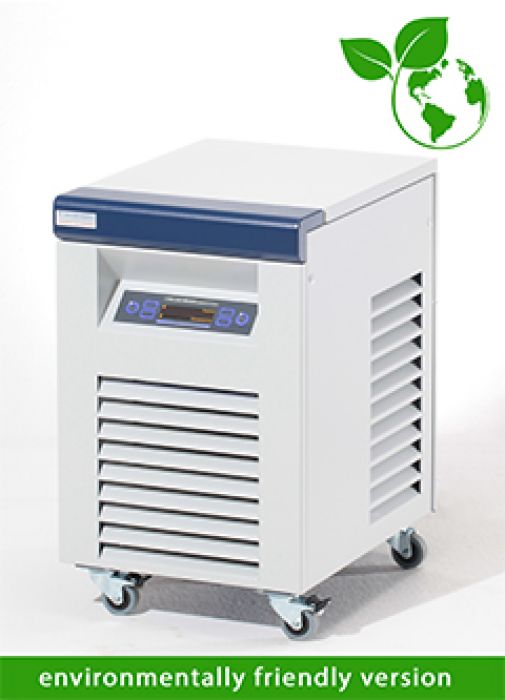

Van der Heijden KÜHLMOBIL 0001-W-RB400 600W

Art.Nr.

L1712-100275

Watergekoelde chiller
Koelvermogen @ 20°C 600 watt
Temperatuurbereik 16 - 22°C
Pompcapaciteit max. 10 l / min
Voedingsdruk max. 3,5 bar
Aansluitingen: snellkoppeling 9 mm
Afmetingen (bxdxh) 360 x 470 x 590 mm
Gewicht 52 kg
Koelmiddel R290
Vermogen 430 watt max230 V/50 Hz/1 PH/N/PE

Bekijk alle specificaties

excl. BTW 4.355,-

Catalogusprijs 4 805,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Van der Heijden
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

KÜHLMOBIL 600 watts to 1kW -now supplied with natural refrigerant R290

Environmentally friendly versions

Compact and quiet Inquire about a product now without obligation! A powerful but quiet, small circulatory cooler available in different cooling powers. A cooling unit cools the circulating water and/or antifreeze mixture in a small container, from where it is supplied to the cooling unit by a circulation pump.The container is easily accessible and can be filled from under the hinged cover on the top of the unit.This type of unit is available in a version with a 0.4 bar pump with up to 28 l/min or a 3.5 bar pump with up to 10 l/min. The chiller can be supplied as an air or water cooled version.

Applications

Rotary evaporators

Distillation devices

Soxhlet extractions

Water baths

Calorimetry

TGA

Electron microscopy

AAS-devices

ICP-devices

Extraction

Instrument cooling

Scanning electron microscopy

XRD
