VOORRAAD IKA mini G Centrifuge
Art.Nr.
L033958000

VOORRAAD IKA mini G Centrifuge

Art.Nr.
L033958000
Geschikt voor Epjes, PCR buizen en PCR strips 8 posities,
6000 rpm, vaste hoekrotor
Inclusief adapters voor 0,5/0,4 & 0,2 ml buizen
Afmeting (lxbxh): 150 x 175 x 105 mm
Gewicht: 1,4 kg
Bekijk alle specificaties
excl. BTW  301,-  370,-
370,-
(Alle prijzen zijn exclusief BTW)
-
+
Specificaties
Specificaties
Merk IKA
Uitvoering Routine
IVD uitvoering Nee
Max. G-kracht 2.000
Max. RPM 6.000
Max. volume Microliter tube
Productbeschrijving

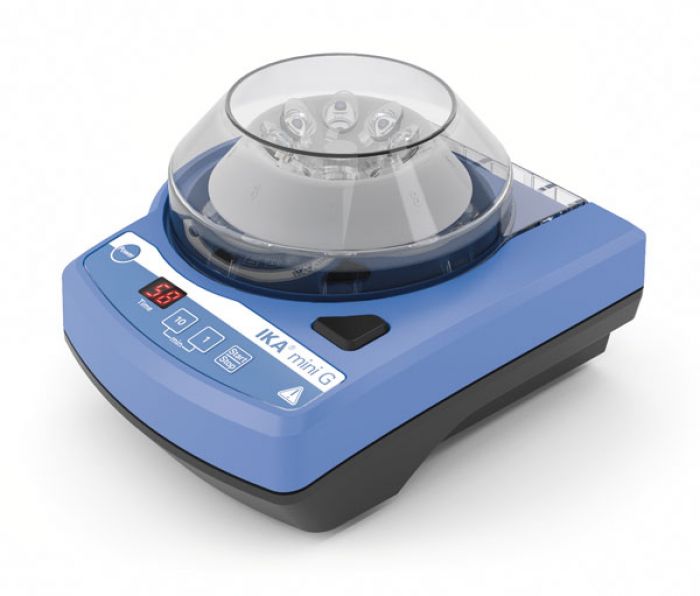

IKA Mini G centrifuge

  • Mini-centrifuge voor alle toepassingen die hele hoge snelheden niet verwiesen, zoals: micro-filtraties en cel scheiding.
  • De transparante deksel maakt een constante observatie van de inhoud in de centrifuge mogelijk.
  • De mini-centrifuge kan worden gebruikt voor zowel Epjes, PCR-tubes als ook PCR-strips.
  • Als veiligheidsmaatregel kan de centrifuge alleen gestart worden wanneer de deksel is gesloten.
  • De deksel opent gemakkelijk met een druk op de knop

Dit zijn de belangrijke parameters

  • Rotor met 8 posities
  • Vast toerental van 6000 rpm
  • Digitale timer instelbaar van 1 tot 99 min.
  • Geïntegreerde snelle stop
  • Snelle opstart van de snelheid
  • Compact ontwerp en stille werking
  • Rotor uitwisselbaar zonder gereedschap
  • Eenvoudige bediening met touch toetsenbord

Volgende accessoires bij de levering inbegrepen:

  • Rotor 8 x 1,5 / 2 ml
  • Rotor 4 x strip 8 x 0,2 ml
  • Adapterset 0,5 ml x 8
  • Adapterset 0,4 ml x 8
  • Adapterset 0,2 ml x 8

Extra informatie van IKA website

Mini-centrifuge for all applications which do not require high speeds, e.g. micro-filtrations and cell separation. Transparent cover allows constant observation of centrifuge. The mini-centrifuge can be used for both PCR-vessels and PCR-strips. As a safety feature, the centrifuge will run only when the lid is closed. Lid opens easily with the press of a button.

  • Fixed speed of 6000 rpm
  • Digital timer adjustable from 1 to 99 mins
  • Integrated quick stop
  • Fast startup of speed
  • Compact design and quiet operation
  • Rotor exchangeable without tools
  • Easy operation with touch keypad


Accessories included in delivery:

  • Rotor 8 x 1.5 / 2 ml
  • Rotor 4 x strip 8 x 0.2 ml
  • Adapter set 0.5 ml x 8
  • Adapter set 0.4 ml x 8
  • Adapter set 0.2 ml x 8

Tecnical data

Capacity 8x 2,0ml
Pemitted density 1.2 kg/dm3
Centrifugal acceleration 2000 G
Kinetic energy max. 20 Nm
Motor rating input 12 W
Motor rating output 8 W
Speed range 6000 - 6000 rpm
Reversible direction of rotation no
Speed deviation 5 %
Power-on time ON 99 min
Timer yes
Timer display 7 segment LED
Permissible ON time 100 %
Unbalance sensor no
Quick stop yes
Cover opening automatic
Rotor exchange without tool
Protective cover yes
Dimensions (W x H x D) 155 x 105 x 175 mm
Weight 1.4 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 30
USB interface no
RS 232 interface no
Analog output no
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 12 W
DC Voltage 24 V=
Current consumption 500 mA
