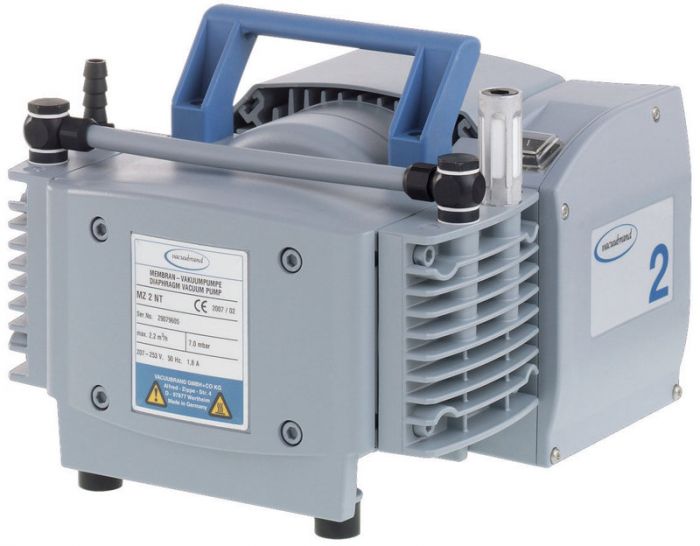

VOORRAAD Vacuubrand MZ2NT membraanpomp 7 mbar 2,2 m3/h

Vacuubrand MZ 2NT membraanpomp 7 mbar 2,2 m3/h

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics and allow a wide range of applications for non corrosive gases. The two-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 7 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. The new NT-series features further improved performance data.

Performance features

• contamination-free pumping and evacuation
• high flow rate even near ultimate vacuum
• whisper quiet
• very low vibration
• exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs

Technical data

Technical data	Unit	MZ 2 NT
Number of heads / stages		2 / 2
Max. pumping speed at 50/60 Hz	m3/h	2.2 / 2.4
Max. pumping speed at 50/60 Hz	cfm	1.3 / 1.4
Ultimate vacuum (abs.)	mbar/torr	7 / 5.2
Ambient temperature range (operation)	°C	10 - 40
Ambient temperature range (storage)	°C	-10 - 60
Max. back pressure (abs.)	bar	2
Inlet connection		Hose nozzle DN 8-10 mm
Outlet connection		Silencer / G1/4"
Rated motor power	kW	0.18
Rated motor speed at 50/60 Hz	min-1	1500/1800
Degree of protection		IP 40
Dimensions (L x W x H)	mm	243 x 239 x 198
Weight	kg	11.0
Noise level at 50 Hz, typ.	dBA	45
NRTL certification		Canada and the USA
ATEX conformity (only 230V)		II 3G IIC T3 X Internal Atm. only
Items supplied		Pump completely mounted, ready for use, with manual.
Accessories		Small flange KF DN 16 / G1/4" (662590) Rubber vacuum tubing DN 8 mm (686001)
