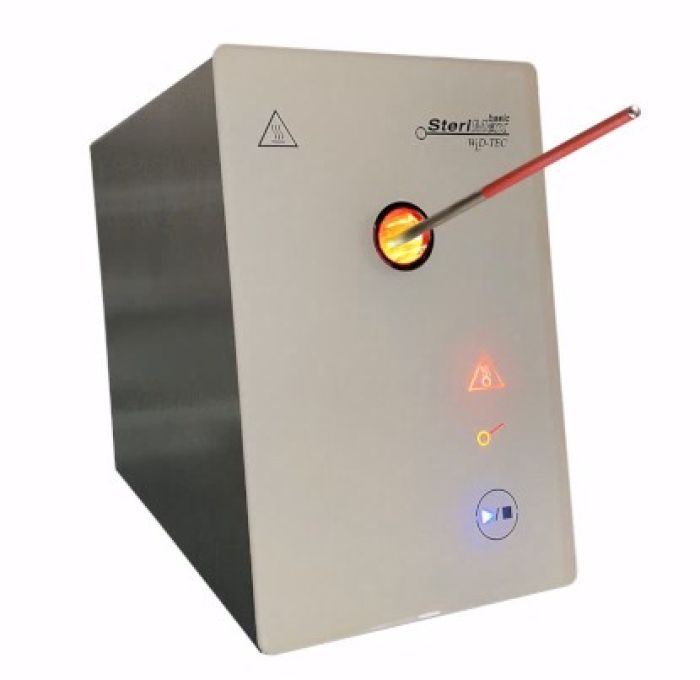

WLD-TEC Sterimax basic IR-hotspot sterilisator
Art.Nr.
L2204.101.000

WLD-TEC Sterimax basic IR-hotspot sterilisator

Art.Nr.
L2204.101.000
Infrarood entoogsterilisator Compact apparaat voor gloeien zonder vlam! Elektrisch systeem voor sterilisatie Geschikt voor inoculatie loops, naalden en instrumenten Ideaal voor laboratoria en veiligheidskasten waar het gebruik van gassen en open vuur niet is toegestaan Apparaat wordt automatisch gestart als de oese wordt ingevoerd Geen verbrandingsgevaar aan de buitenkant Afmetingen (bxhxd) 110 x 170 x 180 mm Gewicht 1,8 kg
Bekijk alle specificaties
excl. BTW  841,-
900,51
(Alle prijzen zijn exclusief BTW)
-
+
Specificaties
Specificaties
Merk WLD-tec
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

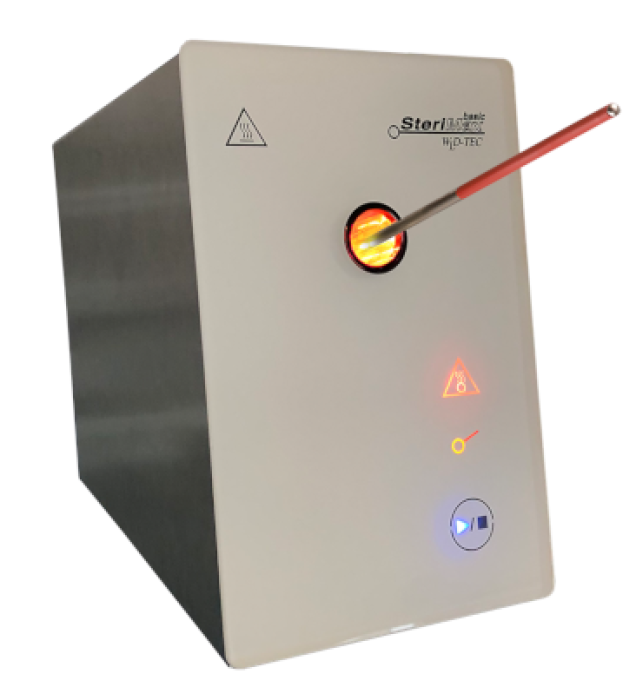

WLD-TEC Sterimax basic IR-hotspot sterilisator

NEW ! Sterilizing by IR-HotSpot ! SteriMax basic - Infrared Loop Sterilizer. High-Speed Annealing and Sterilizing without flame.

• Instantly ready to work without any unnecessary warm-up
• No ranger of combustion on the housing (Cool-Touch)
• Comfortable touch Operation
• Efficient use of energy through Thermocontol Technology
• Annealing tube made of special quartz glass
• Very simple cleaning of the device and the annealing tube

High-Speed Annealing and Sterilizing the Smart Way
Are you looking for a fast, efficient and flameless product to anneal or sterilize your inoculation loops and delicate micro instruments? Then our electrical SteriMax basic should be your first choice – ideally suited for use in any type of lab, anaerobic work environment and Laminar Flow Cabinet.

Smart Infrared Light – Instantly Ready to Work
Specifically focused infrared light generates an IR-HotSpot in which your inoculation loop is sterilized at temperatures from 750 to 1000°C after only 10 seconds. The SteriMax basic just needs to be plugged in and will be immediately ready to use, without any unnecessary  warm-up period. Our highly sophisticated annealing tube is based on many years of experience. It is made of special quartz glass. The tube is closed at one end preventing any risk of contamination with pathogenes. The annealing tube can be slid out in a matter of seconds for easy cleaning.

Smart Operation – Comfortable Working
SteriMax basic allows you to fully focus on your core task. Hardly any attention is needed for inserting your inoculation loop into the annealing tube – which is easily accessible from the front of the flat glass panel. The sterilization process starts with just a fingertip on the touch panel or by pushing the foot pedal (foot pedal optional). A fixed timer (10 sec.) controls the annealing of your instruments  automatically. The course of the sterilization can be followed from start to end by looking upon the inoculation loop symbol. After that your inoculation loop is ready for use!

Smart Use of Power – Minimum Heat Dissipation
’Thermocontrol’ is the key element for an efficient use of power. It allows for quick but smooth softstart of the infrared light and a short  heating period. Thermocontrol uses the residual heat and automatically shortens the energy supply for the next sterilization. Whenever you pause, your energy consumption and heat dissipation will pause as well.

Smart Design – Outstanding Features
SteriMax basic comes in an elegant stainless steel housing with a touch safety glass control panel designed for extreme laboratory  invironments with many unique features.



Operation
Touch operation:
Foot pedal operation:


start of sterilization (10sec.)
start of sterilization (10sec.) (foot pedal optional)

Thermocontrol:
Status Display:
Sterilization at start-up:

dynamic sterilization timer
optical display of the sterilization Progress
sterilization of the annealing tube before usage

Annealing tube:
Sterilization temperature:

Quartz glass
750 °C - 1000 °C (1382 °F - 2012 °F)

Safety features
Residual heat display:
Automatic unit switch off:
Temperature monitor:


indicates a hot annealing tube
15 min.
thermal circuit breaker

Electrical
Power supply:



Power consumption:
Protection class:
Heat source:


230 V mains voltage: 220 - 240 V  50/60 Hz  2.6 A
120 V mains voltage: 112 - 128 V  50/60 Hz  5.1 A
100 V mains voltage: 95 - 105 V  50/60 Hz   6 A

approx. 600 W / short time (5 - 10 s)
IP 20
IR halogen spot light

Mechanical
Quartz glass annealing tube:
Casing:
Measurements (w x h x d):
Weight:


outer-Ø 19 mm, inner-Ø 16 mm, length 112 mm
heat resistant glass / stainless steel, UV and solvent resistant
110 x 170 x 180 mm
approx. 1800 g

Licenses
CE:
EU guidelines:


EN 61326-1, EN 61010-1, EN 61010-2-010, EN 62471
2014/30/EU, 2014/35/EU, 2011/65/EU, 2006/25/EG

Information on radiation
Emission limit:


The emission limit „risk free“ is respected.
The device is assigned to the risk free group
according to EN 62471.

Protected Design

DE 20 2016 101 067
