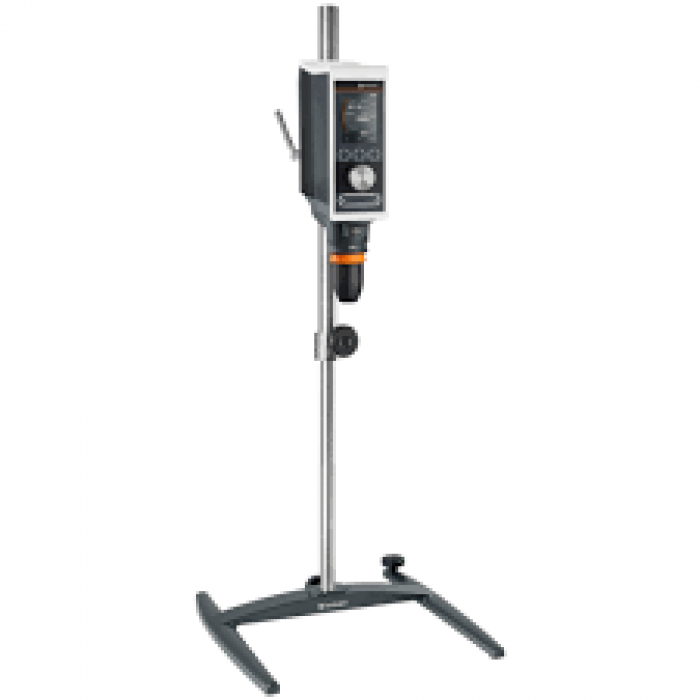

Heidolph Hei-Torque bovenroerder Gold 1 Package

Hei-TORQUE Gold 1 Package consists:

Hei-TORQUE Ultimate 100
Telescope stand
Clamp

Heidolph Hei-Torque Ultimate 100 bovenroerder 50l 60000mPas

These stirrers are ideal for demanding tasks which have to be reproducible and documentable. The huge number of additional features and operation modes allows for a perfect adjustment to your individual application

• Accurate torque indication shows any viscosity changes
• Constant speed even under changing loads
• Digital 3.2" display for ease of operation:Allows for pre-programmed profiles
• Saves these profiles in memory
• Interval operation
• Watch rpm and torque graph life
• Timer / Countdown / Real time settings
• Newest motor generation provides maximum power at minimum noise level
• Safe start and stop of operation via slide touch panel to avoid unintended stirring
• RS 232 or USB interface to save all process data in a digital file
• Free software to automate and to save all process parameters

Technical data Hei-TORQUE Ultimate 100

• Power rating, motor input/output (W): 90/50
• Number of speed gears: 1
• Speed range (rpm): 10- 2.000
• Speed indicator: digital colour 3.2"
• Speed control: electronic
• Torque, maximum (Ncm): 100
• Torque indicator: precise value
• Overheat protection: automatic cut-out
• Motor protection: temperature control software
• Viscosity, max. (mPa s): 60.000
• Stirring cap. (H2O), max. (l): 50
• Analog / digital interface: USB or RS232
• Admissible session: continuous operation
• Counter/Timer: yes
• Shaft diameter, max. (mm): 10.5
• Ambient temperature range: 5 °C - 31 °C at 80 % rel. humidity, 32 °C - 40 °C linearly increasing to 50 % relative humidity
• Dimensions (wxhxd) (mm): 86 x 328 x 241
• Stay bar size (dia. x l) (mm): 13 x 160
• Weight (kg): 4.5
• Protection class (DIN EN 60529): IP54
