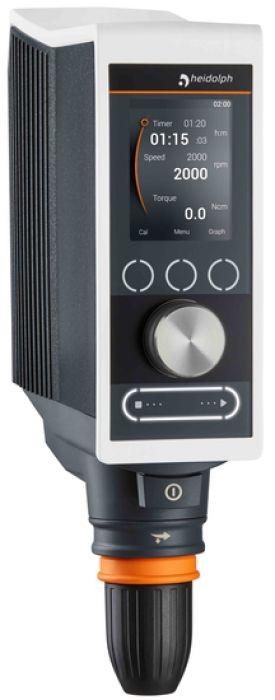

Heidolph Hei-Torque Ultimate 200 bovenroerder 50l 100000mPas

Heidolph Hei-Torque Ultimate 200 bovenroerder 50 liter 100.000 mPas

The Hei-TORQUE Ultimate 200 laboratory stirrer is ideal for the powerful stirring of viscosities up to 100,000 mPas or volumes up to 50 liters (H2O). It has a wide speed range (10 - 2,000 rpm) and a maximum torque of 200 Ncm.

In addition, the Hei-TORQUE Ultimate 200 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.

The laboratory stirrer Hei-TORQUE Ultimate 200 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Ultimate 200 has a quick -action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools for the best stirring results.

Technical data

Rotation speed range 10 – 2,000 rpm

Rotation speed indicator digital color 3.2"

Speed control electronic

Max. torque 200 Ncm

Torque indicator precise value

Overheat protection automatic cut-out

Viscosity max. 100,000 mPa s

Stirring cap. (H2O), max. 50 l

Throught-shaft design yes

Shaft diameter, max. 10.5 mm

Counter/ Timer yes

Analog / digital interface USB and RS 232

Power rating motor input 120 W

Protection class DIN EN 60529 IP 54
