IKA LR-2.ST Compact power labreactor

IKA LR-2.ST Compact power labreactor

Modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale.
The system is particularly characterized by the agitator mounting, which allows for a safe transfer of the higher motor torque.
ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.

• Suitable for vacuum operation
• Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample
• Infinitely variable speed
• Torque trend display for measuring changes in viscosity
• Microprocessor-controlled speed regulation, enables steady speed, also under load
• Removable WiCo (wiresless controller) for remote and safe use in a fume hood

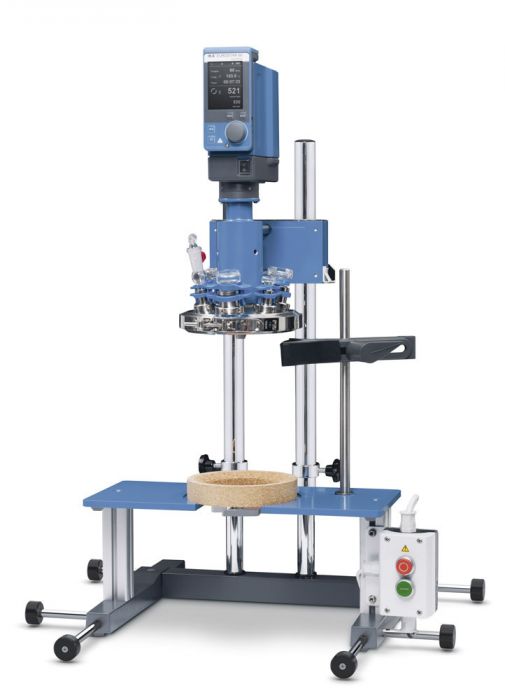

The LR-2.ST laboratory reactor system consists of:

• Stand system
• EUROSTAR 60 control laboratory stirrer with higher speed and no gear ranges
• Safety switch
• Reactor cover

Technical data

• Telescope stand stroke : 390mm
• Usable volume min.: 500ml
• Usable volume max.: 2000ml
• Width: 460mm
• Depth: 430mm
• Viscosity max.: 50000mPas
• Weight: 25kg
• Height: 1240mm
• Working temperature max. : 230°C
• Working temperature min. : Room temp.°C
• Permissible ambient temperature max.: 40°C
• Permissible ambient temperature min.: 5°C
• Reactor vessel openings (units/standard): 3/NS 29/32 2/NS 14/23
• Permissible relative humidity: 80%
• Attainable vacuum: 25mbar
• Speed min.: 8rpm
• Speed max.: 290rpm
• Material in contact with medium: borosilicate glass, FFPM, PTFE, steel 1.4571
