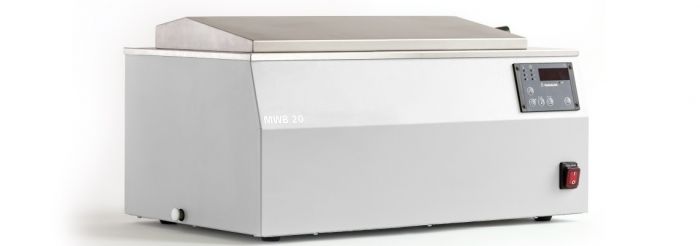

Medingen / LRT-Arnsdorf MWB20 waterbad 22 liter

Art.Nr.

L161A-10736

Inhoud 22 liter
Bad opening: 455 x 455 x 230 mm
Bad diepte: 170 mm
Temperatuurbereik 25 - 100°C
Compleet met dakdeksel
Gewicht circa 12,5 kg
Aftapkraan optioneel

Bekijk alle specificaties

excl. BTW 1.121,-

Catalogusprijs 1 315,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	Medingen - LRT
Uitvoering	Enkelvoudig bad
Volume	22 liter

Productbeschrijving

Medingen MWB RVS waterbaden 2 tot 80 liter

volume 2,5,10,20,40 en 80 liter
met of zonder dakdeksel / ringdeksel
verschillende houders en toebehoren
timer 0 - 99,99 minuten
gewicht 5 - 33 kg

Technical Data

type	MWB 2	MWB 5	MWB 10	MWB 20	MWB 40	MWB 80

admissible ambient temperature	1...40°C	1...40°C	1...40°C	1...40°C	1...40°C	1...40°C
working temperature range	25...100°C	25...100°C	25...100°C	25...100°C	25...100°C	25...100°C
temperature stability (at 70°C in water)	±0.2 K	±0.2 K	±0.2 K	±0.2 K	±0.2 K	±0.2 K
temperatur homogeneity	<0.5 K	<0.5 K	<0.5 K	<0.5 K	<0.5 K	<0.5 K
heating time (from 20°C to 70°C)	<7.8 min/l	<4.5 min/l	<2.8 min/l	<1.8 min/l	<1.6 min/l	<1.6 min/l
heat emission	<35 Wh	<65 Wh	<80 Wh	<100 Wh	<115 Wh	<125 Wh
bath volume	1...2 l	2...6 l	4...10 l	6...20 l	15...35 l	20...80 l
bath opening (lxw)	ø130 mm	215 x 230 mm	390 x 230 mm	455 x 230 mm	845 x 230 mm	620 x 420 mm
bath depth	120 mm	120 mm	120 mm	170 mm	170 mm	300 mm
temperature display	LED; 1 K (0.1 K possible)	LED; 1 K (0.1 K possible)	LED; 1 K (0.1 K possible)	LED; 1 K (0.1 K possible)	LED; 1 K (0.1 K possible)	LED; 1 K (0.1 K possible)
temperature setting	digital; 0.1 K	digital; 0.1 K	digital; 0.1 K	digital; 0.1 K	digital; 0.1 K	digital; 0.1 K
saftey class	1	1	1	1	1	1
heating power	700 W	1000 W	1600 W	2000 W	2600 W	2600 W
power supply	230 V / 50Hz	230 V / 50Hz	230 V / 50Hz	230 V / 50Hz	230 V / 50Hz	230 V / 50Hz
body width (approx.)	240 mm	320 mm	490 mm	550 mm	940 mm	730 mm
body depth (approx.)	240 mm	340 mm	340 mm	340 mm	340 mm	540 mm
body height (approx.)	220 mm	220 mm	220 mm	340 mm	290 mm	465 mm
empty weight (approx.)	5.0 kg	7.5 kg	10.0 kg	12.5 kg	21.0 kg	33.0 kg
