Q3 actie IKA CBC5 Basic circulatiethermostaat -20 tot 200°C

Art.Nr.

L034165000

Hoog efficient circulatie / rondpompthermostaat
Temperatuurbereik -20 tot +200°C
Temperatuurstabiliteit DIN 12876 (@+70°C) 0.02 ±K
Koelvloeistof: R134a
Koelvermogen (@20°C) 350 W
Koelvermogen (@10°C) 320 W
Koelvermogen (@0°C) 270 W
Koelvermogen (@-10°C) 190 W
Koelvermogen (@-20°C) 80 W
Koelvermogen (@ -20°C; 3200 rpm) 130 W
Koelvermogen (@ 20°C; 3200 rpm) 400 W
USB/RS232 interface
230V 50/60Hz 3000 watt
Afmetingen (bxhxd) 275 x 690 x 490 mm
Gewicht 39,5 Kg

Bekijk alle specificaties

excl. BTW 4.851,- 5.598,-

Catalogusprijs 6 517,-

(Alle prijzen zijn exclusief BTW)

Download de PDF

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

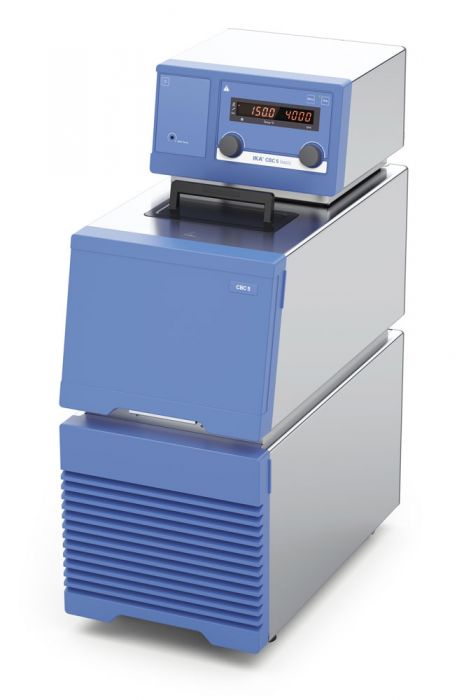

CBC 5 basic

The CBC 5 basic is a powerful refrigerated and heating circulator with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C. It is best suited for external applications thanks to its proven pressure and suction pump. High-quality insulation of the device allows for fast heat-up times and reduces heat input at low temperatures.All parameters are manageable (read out, monitored and completely documented) by software (e. g., labworldsoft(r) or NAMUR commands).

High performance pressure/suction pump (speed-controlled)Industry standard LED display for maximum visibility (pump speed and temperature)

Adjustable safety circuitVisible and audible alarm

Safety drain valveUSB / RS 232 interfaces (labworldsoft(r) and enabling online updates of device software)

Connection for external temperature probe (PT 100)

Safety classification III (FL, DIN 12876)

Scope of delivery

CBC 5 basic

Hose olive NW 12 (2 pcs.)

ScrewdriverUSB

Cable - USB A to Micro-B, 2 m

Downloads
